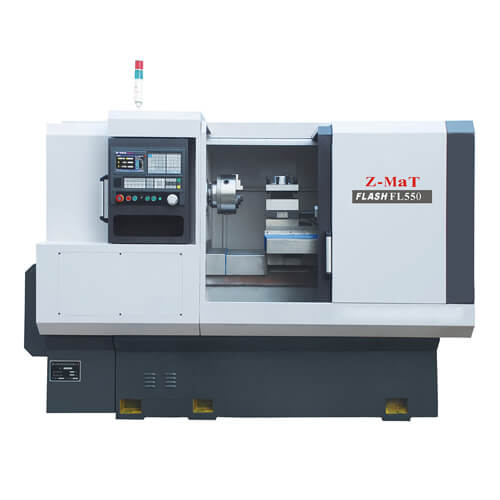

Machine Characteristics
This series allows high flexibility n tooling configurations.
A wide range of gang type, turret, milling and polygon tools can be combined to fit your specific part production task.
• Linear guideways are protected by stainless steel telescoping guards–provides maximum protection from chips and coolant and extended machine life
• Center mounted ball screws are placed between the bed ways, minimizing side torque and friction. Provides cooler operation, better dynamic efficiency and longer life.
• Servo motors and drives on X/Z axes. Spindle can be driven by VFD or Servo.
• Various control systems, chucks and tool posts are available. Highly configurable to fit your needs.

Standard Features
• Manual 3-Jaw Chuck (For Swing>400mm)
• Hydraulic Collect (For Swing<400mm)
• Gang Type Tooling (For Swing<400mm)
• 4-Station Tool Post + Gang Plate (For Swing>400mm)
• Ergonomic Operator Panel Design
• Automatic Lubrication System
• Automatic Coolant System
• Built-In Safety Features

Optional Features
• Hydraulic Chucks
• Different Spring Collets
• Different Control Systems
• Live Tooling
• Bar Feeder
• 8-Station Turret (Available on FL300/ FL400/ FL500/ FL550/ FL630)


Chuck Size: 12″
Max.Swing Dia. Over Bed: Ø550mm
Max. Workpiece Length: 500mm
Max. Swing Dia. Over Slide: Ø360mm


Spindle Bore: Ø105mm
Max. Bar Capacity: Ø91mm
Spindle Nose: A2-8
Max. Spindle speed: 1000rpm, *2000rpm
Spindle Power: 7.5/11Kw, *11/15kW


X Axis Travel: 260mm, *350mm
Z axis travel: 500mm
X/Z axis rapid traverse: 15/15m/min


Toolpost type: 4-Station toolpost, *8-Station turret, *Gang type tools
No. of tool stations: 4-10


Bed Type/guideway: Flat/LM
Power Capacity: 15kVA
Overall Dimension(L×W×H): 2650x1360x1800mm
Weight(about): 2800Kg
