Machine Characteristics

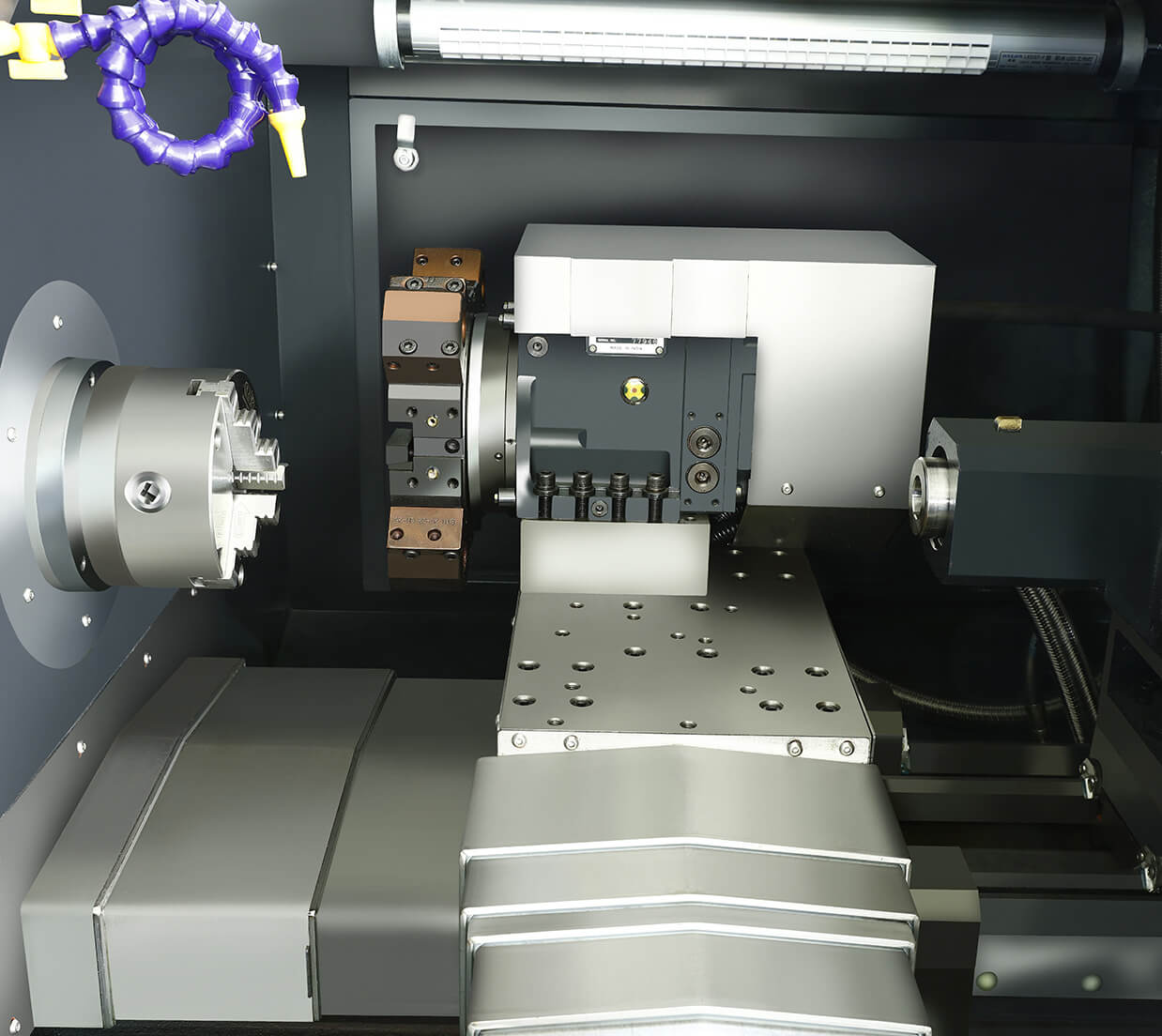

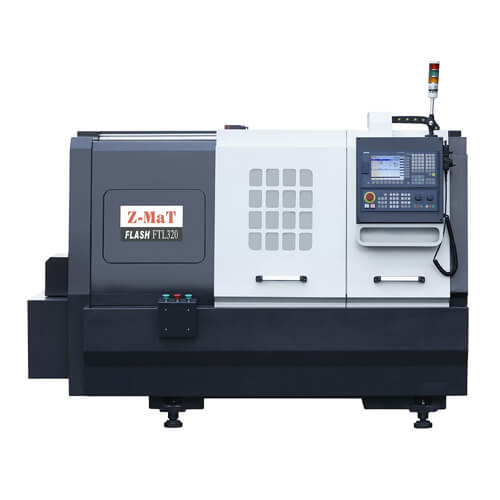

Comprehensive priced CNC Turning Center – when you need a high quality CNC lathe that has BOTH – a high quality turret and tailstock.Built atop the uniquely designed one-piece solid cast base and lathe bed found in the larger FTL lathe models
• The tailstock is set on its own guide way, parallel to the main bed ways. This structure is highly rigid and accurate.
• Linear guideways are protected by telescoping stainless steel covers–maximizing ballscrew protection and extending tool life.
• Center mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
• Servo drives on X/Z axes. Spindle can be driven by VFD or Servo.
• Various control systems, chucks and tool mounting systems are available.

Standard Features
• Manual 3-Jaw Chuck
• 4-Station Tool Post Plus Gang Tool Plate
• Manual Tailstock
• Ergonomic Operator Panel Design & MPG
• Automatic Lubrication System
• Automatic Coolant System
• Work Lamp & Build-In Safety Features

Optional Features
• Different Chucks
• Different Control Systems
• 8-Station Turret (except FTL300)
• Hydraulic Tailstock
• Bar Feeder
• C Axis & Live Tooling
• C Axis & 12 Station Power Turret (for big model)


Chuck Size: 6″, *8″
Max.Swing Dia. Over Bed: Ø400mm
Max. Workpiece Length: 300mm
Max. Swing Dia. Over Slide: Ø140mm


Spindle Bore: Ø55mm
Max. Bar Capacity: Ø46mm
Spindle Nose: A2-5
Max. Spindle speed: 2500rpm, *4000rpm, *5000rpm
Spindle Power: 3.7/ 5.5kW, *5.5/ 7.5kW

Spindle Bore: *Ø62mm
Max. Bar Capacity: *Ø52mm
Spindle Nose: *A2-6
Max. Spindle Speed: *2000rpm, *4000rpm
Spindle Power: *3.7/ 5.5kW, *5.5/ 7.5kW


X Axis Travel: 280mm
Z axis travel: 380mm
X/Z axis rapid traverse: 25/15m/min


8-Station Turret, *12-Station Turret
No. of tool stations: 8+2, *12+2


Manual, *Hydraulic
Quill taper: MT4
Quill travel: 80mm


Bed Type/guideway: Flat/LM
Power Capacity: 13KVA
Overall Dimension(L×W×H): 2200×1500×1600mm
Weight(about): 2400Kg
