Machine Characteristics
Comprehensive priced CNC Turning Center – when you need a high quality CNC lathe that has BOTH – a high quality turret and tailstock.

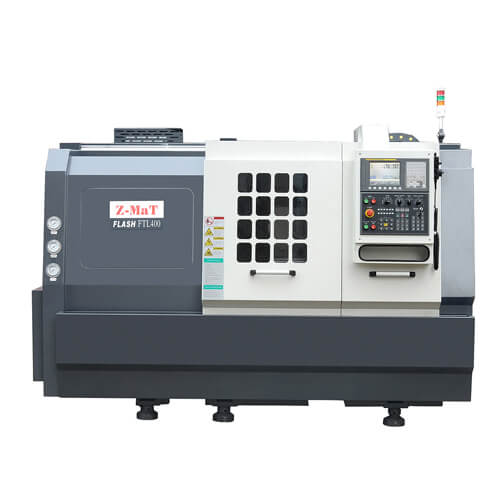

Built atop the uniquely designed one-piece solid cast base and lathe bed found in the larger FTL lathe models.
• The tailstock is set on its own guide way, parallel to the main bed ways. This structure is highly rigid and accurate.
• Linear guideways are protected by telescoping stainless steel covers–maximizing ballscrew protection and extending tool life.
• Center mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
• Servo drives on X/Z axes. Spindle can be driven by VFD or Servo.
• Various control systems, chucks and tool mounting systems are available.

Standard Features
• Manual 3-Jaw Chuck
• 4-Station Tool Post Plus Gang Tool Plate
• Manual Tailstock
• Ergonomic Operator Panel Design & MPG
• Automatic Lubrication System
• Automatic Coolant System
• Work Lamp & Build-In Safety Features

Optional Features
• Different Chucks
• Different Control Systems
• 8-Station Turret (except FTL300)
• Hydraulic Tailstock
• Bar Feeder
• C Axis & Live Tooling
• C Axis & 12 Station Power Turret (for big model)


Chuck Size: 8″
Max.Swing Dia. Over Bed: Ø400mm
Max. Workpiece Length: 650mm
Max. Swing Dia. Over Slide: Ø220mm


Chuck Size: 8″
Max.Swing Dia. Over Bed: Ø400mm
Max. Workpiece Length: 450mm
Max. Swing Dia. Over Slide: Ø250mm


X Axis Travel: 280mm
Z axis travel: 650mm
X/Z axis rapid traverse: 15/15m/min, *20/20m/min


8-Station Turret, *12-Station Turret
No. of tool stations: 8+2, *12+2


Manual, *Hydraulic
Quill taper: MT4
Quill travel: 100mm


Power Capacity: 13KVA
Overall Dimension(L×W×H): 2500x1400x1500mm
Weight(about): 2800Kgs
