Capacity
Chuck Size: 15″/ *18″
Max.Swing Dia. Over Bed: Ø700mm
Max. Workpiece Length: 1000mm, *1500mm, *2000mm(C2C)
Max. Swing Dia. Over Slide: Ø480mm
Machine Characteristics

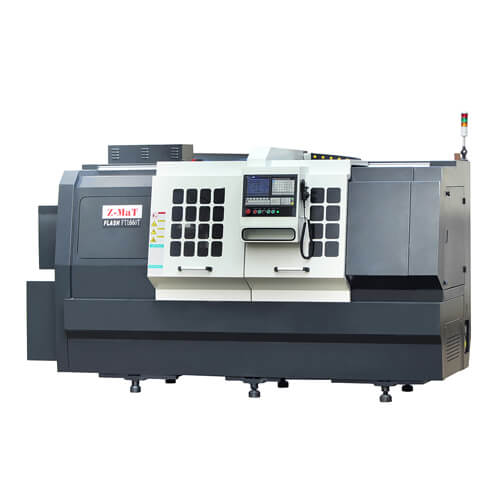

Comprehensive priced CNC Turning Center – when you need a high quality CNC lathe that has BOTH – a high quality turret and tailstock.
Built atop the uniquely designed one-piece solid cast base and lathe bed found in the larger FTL lathe models.

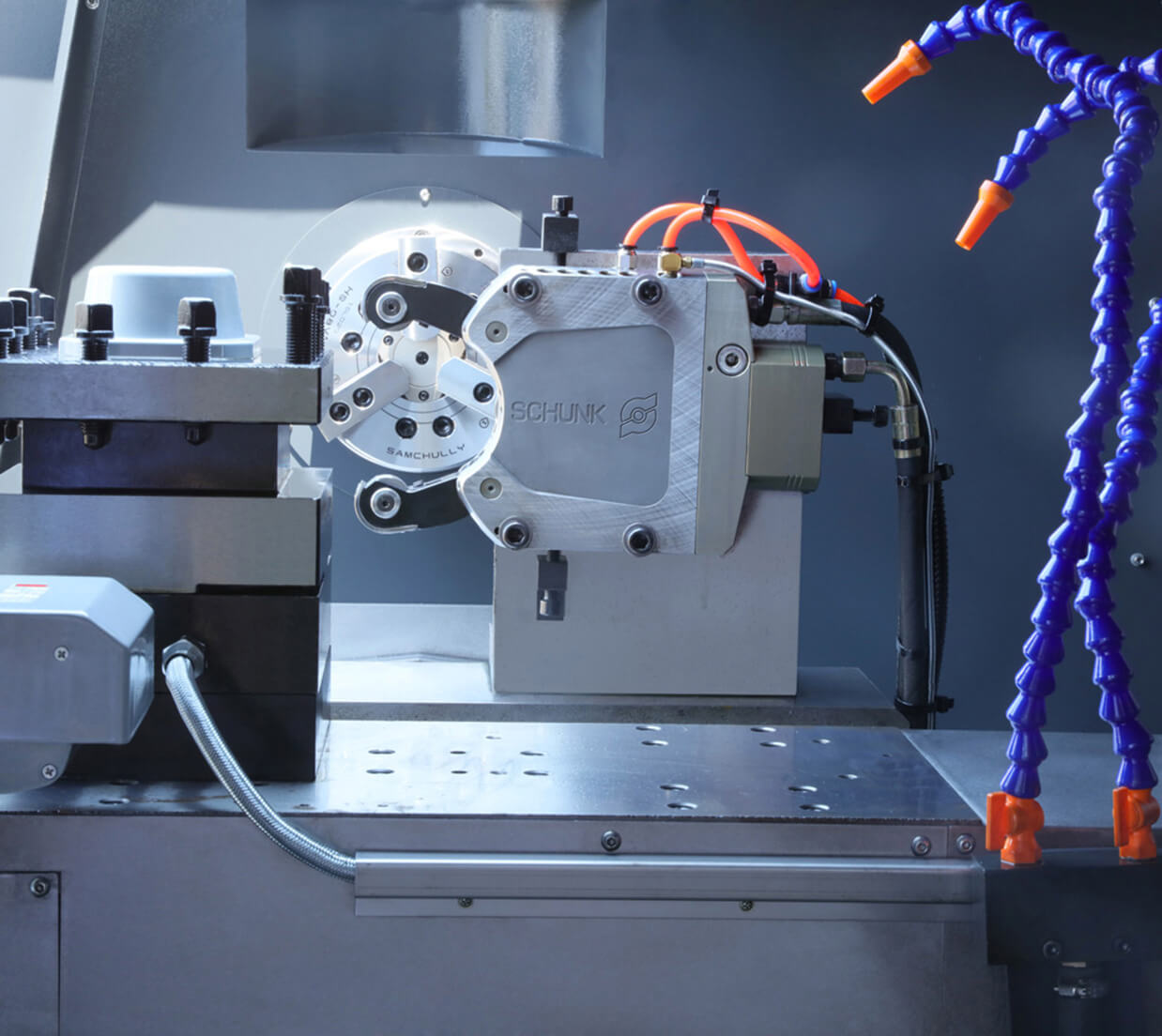

• The tailstock is set on its own guide way, parallel to the main bed ways. This structure is highly rigid and accurate.
• Linear guideways are protected by telescoping stainless steel covers–maximizing ballscrew protection and extending tool life.
• Center mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
• Servo drives on X/Z axes. Spindle can be driven by VFD or Servo.
• Various control systems, chucks and tool mounting systems are available.
Standard Features
• Manual 3-Jaw Chuck
• 4-Station Tool Post Plus Gang Tool Plate
• Manual Tailstock
• Ergonomic Operator Panel Design & MPG
• Automatic Lubrication System
• Automatic Coolant System
• Work Lamp & Build-In Safety Features
Optional Features
• Different Chucks
• Different Control Systems
• 8-Station Turret (except FTL300)
• Hydraulic Tailstock
• Bar Feeder
• C Axis & Live Tooling
• C Axis & 12 Station Power Turret (for big model)
Chuck Size: 15″/ *18″
Max.Swing Dia. Over Bed: Ø700mm
Max. Workpiece Length: 1000mm, *1500mm, *2000mm(C2C)
Max. Swing Dia. Over Slide: Ø480mm
Spindle Bore: Ø120mm
Max. Bar Capacity: Ø110mm
Spindle Nose: A2-11
Max. Spindle speed: 1000rpm
Spindle Power: 15.0Kw/ 11.0kW
X Axis Travel: 370mm
Z axis travel: 1000mm, *1500mm, *2000mm
X/Z axis rapid traverse: 15/15m/min, *20/20m/min
8-Station Toolpost
No. of Tool Stations: 8+2
Tailstock Type: Manual, *Hydraulic
Tailstock Quill Taper: MT5
Tailstock Quill Travel: 100mm
Bed Type/guideway: Flat/LM
Power Capacity: 18kVA
Overall Dimension(L×W×H): 3400x1900x2010mm(shortest)
Weight(about): 4800Kg/ 5600Kg/ 6400Kg
