Capacity
Chuck Size: 8″
Max.Swing Dia. Over Bed: Ø350mm,* Ø400mm
Max. Workpiece Length(center to center): 500mm,*650mm
Max. Swing Dia. Over Slide: Ø200mm
Machine Characteristics

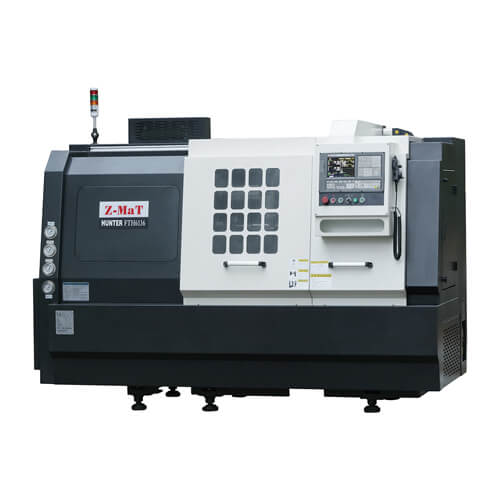

Competetive priced CNC Turning Center – when you need a high quality CNC lathe that has BOTH – a high quality toolpost and tailstock. Built atop the uniquely designed solid cast base and lathe bed found in the larger FTH lathe models.
• The tailstock is set on its own guide way, parallel to the main bed ways. This structure is highly rigid and accurate.
• Center mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
• Servo drives on X/Z axes. Spindle can be driven by VFD or Servo.
• Various control systems, chucks and tool mounting systems are available.
Standard Features
• Manual 3-Jaw Chuck
• 4-Station Tool Post
• Manual Tailstock
• Ergonomic Operator Panel Design & MPG
• Automatic Lubrication System
• Automatic Coolant System
• Work Lamp & Built-In Safety Features
Optional Features
• Different Chucks
• 8-Station Turret
• Different Control Systems
• Hydraulic Tailstock
• Bar Feeder
• C Axis & Live Tooling
• Steady Rest & Hydraulic Follow Rest
• Gear Box
Chuck Size: 8″
Max.Swing Dia. Over Bed: Ø350mm,* Ø400mm
Max. Workpiece Length(center to center): 500mm,*650mm
Max. Swing Dia. Over Slide: Ø200mm
Spindle Bore: Ø55mm
Max. Bar Capacity: Ø46mm
Spindle Nose: A2-5
Max. Spindle speed: 2500rpm
Spindle Power: 5.5kW,*7.5kW
Spindle Bore: Ø62mm
Max. Bar Capacity: Ø52mm
Spindle Nose: A2-6
Max. Spindle speed: 2000rpm
Spindle Power: 5.5kW
Spindle Bore: Ø75mm
Max. Bar Capacity: Ø65mm
Spindle Nose: A2-8Max. Spindle speed: 1600rpm
Spindle Power: 5.5kW,*7.5kW
X Axis Travel: 320mm
Z axis travel: 500mm,*650mm
X/Z axis rapid traverse: 9/12m/min
4-Station Toolpost, *8-Station Turret
No. of tool stations: 4
Manual, *Hydraulic
Quill Taper: MT4
Tailstock Quill Travel: 100mm
Travel of Tailstock: 400mm/ 550mm
Bed Type/guideway: hard way/LM
Power Capacity: 11KVA
Overall Dimension(L×W×H): 2350(2410)x1600x1750mm/
Weight(about): 2050Kgs/ 2300Kgs
