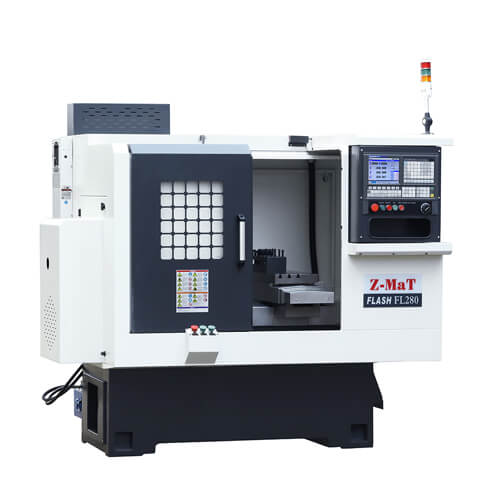

FL280

Machine Characteristics
This series allows high flexibility in tooling configurations. A wide range of gang type, turret, milling and polygon tools can be combined to fit your specific part production task.
• Linear guideways are protected by stainless steel telescoping guards–provides maximum protection from chips and coolant and extended machine life
• Center mounted ball screws are placed between the bed ways, minimizing side torque and friction. Provides cooler operation, better dynamic efficiency and longer life.
• Servo motors and drives on X/Z axes. Spindle can be driven by VFD or Servo.
• Various control systems, chucks and tool posts are available. Highly configurable to fit your needs.

Standard Features
• Manual 3-Jaw Chuck (For Swing>400mm)
• Hydraulic Collect (For Swing<400mm)

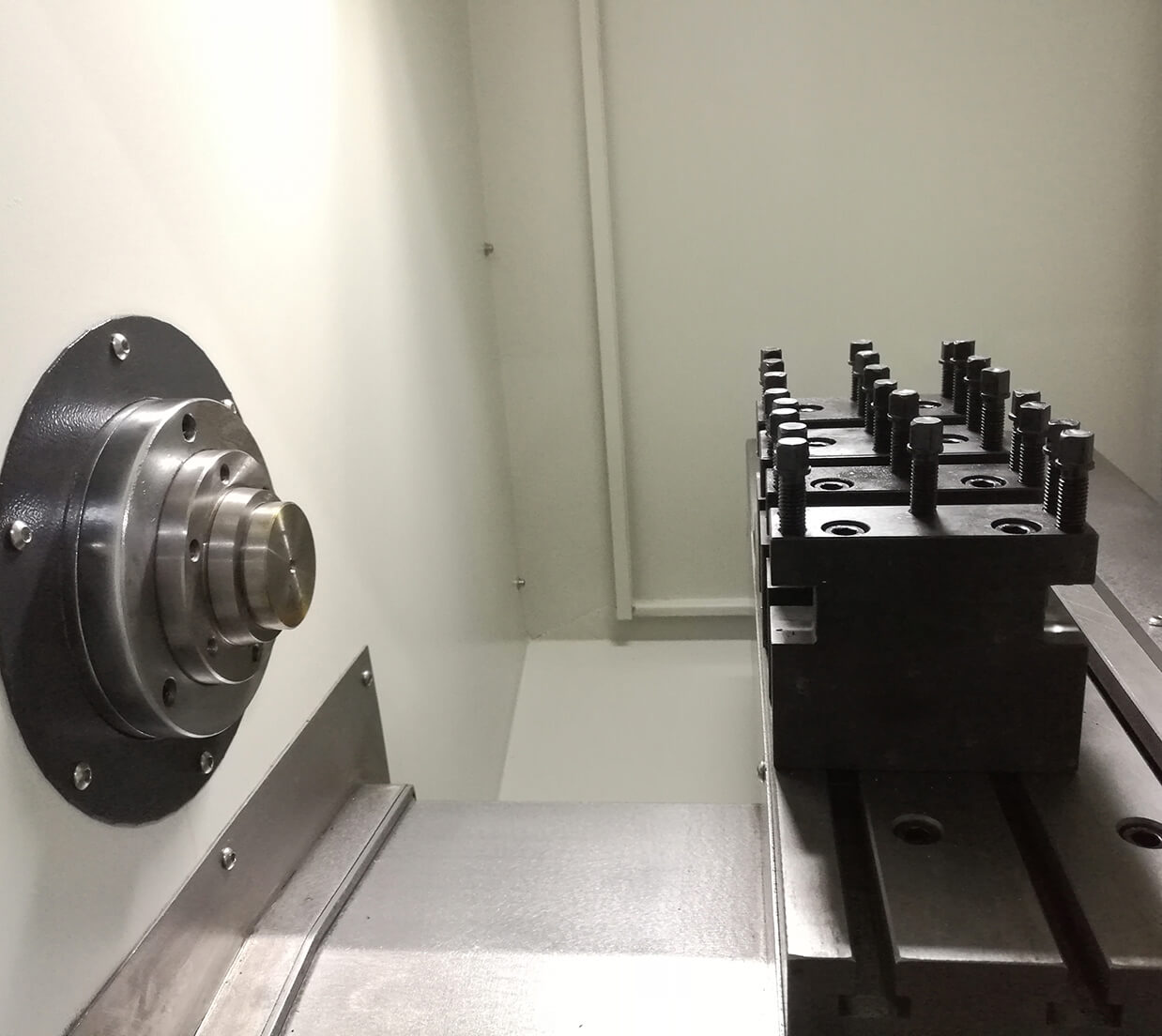

• Gang Type Tooling (For Swing<400mm)
• 4-Station Tool Post + Gang Plate (For Swing>400mm)
• Ergonomic Operator Panel Design
• Automatic Lubrication System
• Automatic Coolant System
• Built-In Safety Features

Optional Features
• Hydraulic Chucks
• Different Spring Collets
• Different Control Systems
• Live Tooling
• Bar Feeder
• 8-Station Turret (Available on FL300/ FL400/ FL500/ FL550/ FL630)

Capacity

Chuck/ Collet: Pneumatic Collet, * Hydraulic Collet
Max.Swing Dia. Over Bed: Ø300mm
Max. Workpiece Length: 250mm(collet) *165 (chuck)
Max. Swing Dia. Over Slide: Ø135mm

Spindle

Spindle Bore: Ø48mm
Drawbar Capacity: Ø41mm
Spindle Nose: ∅ 68 1:4
Max. Spindle speed: 3000rpm
*4500 Spindle Power: 3.7/ 5.5kW

Axis

X Axis Travel: 280mm
Z axis travel: 250mm
X/Z axis rapid traverse: 15/15m/min

Toolspost

No. of tool stations: 4-6
Tool shank size: 16×16mm

Others

Power Capacity: 8KVA
Overall Dimension(L×W×H): 1700x1200x1550mm
Weight(about): 1300Kgs
