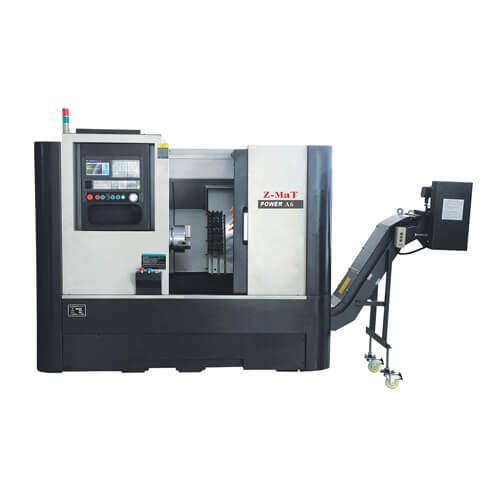

Capacity
Chuck size: 6′, *8′
Max. swing diam. over bed: Ø400 mm
Max. length of workpiece: 320mm
Max. swing diam. over slide: Ø150mm
Machine Characteristics
When we set out to build a heavy duty cutting (hogging) machine we did a number of things: Increased spindle rigidity Widened guideway spacing Increased bed casting weight Increased spindle torque The result is a machine that will take heavy cuts and still assure minimal tool tip vibration. Finer surface finish is the result, even when making heavy cuts.
• German-made BOSCH Rexroth linear guideway.
• High speed with heavy torque-suitable for machining hard materials.

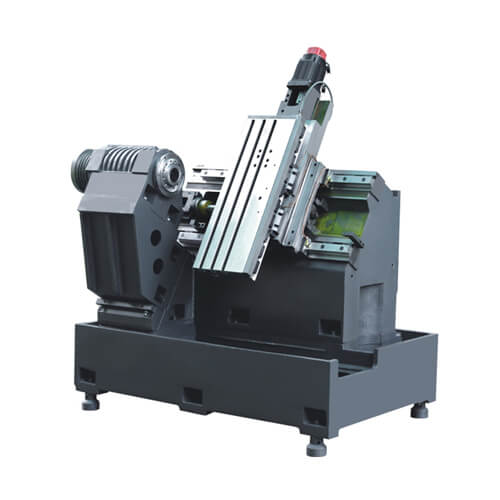

• 60° slant bed makes for easy chip removal.
• Optional floating jaws for securely holding hard, thin-walled pipe.
Standard Features

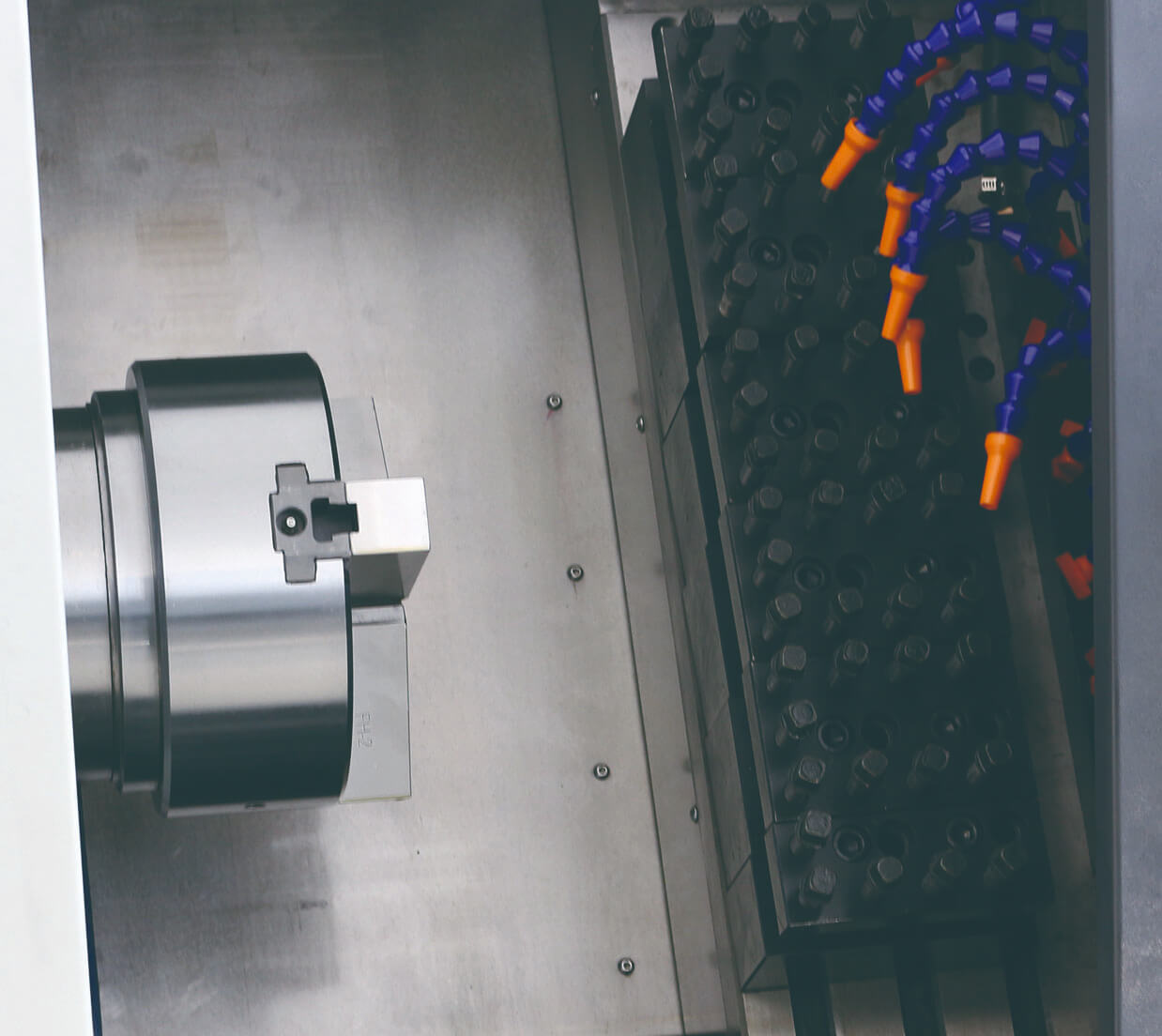

• Hydraulic Chuck
• Gang Type Tooling
• Frequency Inverter
• Work and Alarm Light
• Foot Pedal & Safety Features
• Automatic Lubrication System
• Automatic Coolant System
Optional Features
• Different Chucks & Collets
• Different Control Systems
• Larger Spindle
• Servo Spindle Motor
• Chip Conveyor
• Bar Feeder
• C Axis & Live Tooling
Chuck size: 6′, *8′
Max. swing diam. over bed: Ø400 mm
Max. length of workpiece: 320mm
Max. swing diam. over slide: Ø150mm
Spindle bore: Ø48mm
Max. dia. of through hole: Ø40mm
Spindle nose: A2-5
Spindle speed: 3000rpm
Main motor power:7.5kW,*11.0kW
Spindle bore: Ø55mm
Max. dia. of through hole: Ø45mm
Spindle nose: A2-5
Spindle speed: 1600rpm
Main motor power:7.5kW
X axis travel: 260mm
Z axis travel: 320mm
X/Z axis rapid traverse: 15/15m/min
Type of toolpost: Gang type
No. of tool stations:4-6
OD tool shank size: 32×32mm
N/ A
Slant bed degree: 60°
Guideway type: Linear Motion
Power capacity: 14kVA
Overall dimension (L×W×H): 2100mm×1600mm×1750mm
Weight (about): 3000Kgs
