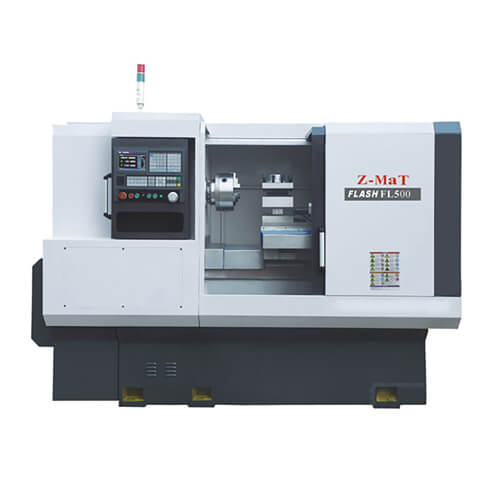

Machine Characteristics
This series allows high flexibility in tooling configurations. A wide range of gang type, turret, milling and polygon tools can be combined to fit your specific part production task. Complete Bi-laterally symmetrical machine body and headstock design increases rigidity and stiffness in all movements of the machine. An added feature bonus is the compact dimensional casting, which keeps advanced performance. Great capabilities at a very reasonable price – a true value in CNC turning machines.
• Linear guideways are protected by stainless steel telescoping guards–provides maximum protection from chips and coolant and extended machine life
• Center mounted ball screws are placed between the bed ways, minimizing side torque and friction. Provides cooler operation, better dynamic efficiency and longer life.
• Servo motors and drives on X/Z axes. Spindle can be driven by VFD or Servo.
• Various control systems, chucks and tool posts are available. Highly configurable to fit your needs.

Standard Features
• Manual 3-Jaw Chuck (For Swing>400mm)
• Hydraulic Collect (For Swing<400mm)
• Gang Type Tooling (For Swing<400mm)
• 4-Station Tool Post + Gang Plate (For Swing>400mm)
• Ergonomic Operator Panel Design
• Automatic Lubrication System
• Automatic Coolant System
• Built-In Safety Features

Optional Features
• Hydraulic Chucks
• Different Spring Collets
• Different Control Systems
• Live Tooling
• Bar Feeder
• 8-Station Turret (Available on FL300/ FL400/ FL500/ FL550/ FL630)


Chuck Size: 10″, *8″
Max.Swing Dia. Over Bed: Ø500mm
Max. Workpiece Length: 500mm
Max. Swing Dia. Over Slide: Ø360mm


Spindle Bore: Ø81mm
Max. Bar Capacity: Ø70mm
Spindle Nose: A2-8
Max. Spindle speed: 1600rpm, *2500rpm
Spindle Power: 5.5/7.5 Kw, *7.5/11.0Kw

Spindle Bore: *Ø62mm
Max. Bar Capacity: *Ø52mm
Spindle Nose: *A2-6
Max. Spindle speed: *2000rpm, *4000rpm
Spindle Power: *5.5/7.5Kw, *7.5/11Kw


X Axis Travel: 260mm, *350mm
Z axis travel: 500mm
X/Z axis rapid traverse: 15/15m/min


Toolpost type: 4-Station toolpost, *8-Station turret, *Gang type tools
No. of tool stations: 4-10


Bed Type/guideway: Flat/LM
Power Capacity: 12kVA
Overall Dimension(L×W×H): 2650x1360x1800mm
Weight(about): 2700Kg
