Machine Characteristics

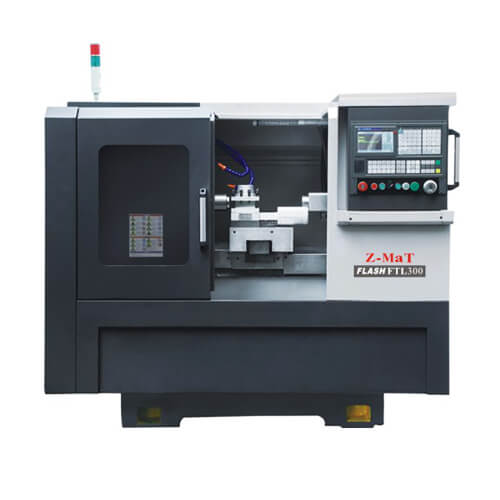

Comprehensive priced CNC Turning Center – when you need a high quality CNC lathe that has BOTH – a high quality turret and tailstock.Built atop the uniquely designed one-piece solid cast base and lathe bed found in the larger FTL lathe models.
• The tailstock is set on its own guide way, parallel to the main bed ways. This structure is highly rigid and accurate.
• Linear guideways are protected by telescoping stainless steel covers–maximizing ballscrew protection and extending tool life.
• Center mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
• Servo drives on X/Z axes. Spindle can be driven by VFD or Servo.
• Various control systems, chucks and tool mounting systems are available.

Standard Features
• Manual 3-Jaw Chuck
• 4-Station Tool Post Plus Gang Tool Plate
• Manual Tailstock
• Ergonomic Operator Panel Design & MPG
• Automatic Lubrication System
• Automatic Coolant System
• Work Lamp & Build-In Safety Features

Optional Features
• Different Chucks
• Different Control Systems
• 8-Station Turret (except FTL300)
• Hydraulic Tailstock
• Bar Feeder
• C Axis & Live Tooling
• C Axis & 12 Station Power Turret (for big model)


Chuck Size: 6″
Max.Swing Dia. Over Bed: Ø300mm
Max. Workpiece Length: 180mm
Max. Swing Dia. Over Slide: Ø135mm


Spindle Bore: Ø48mm
Max. Bar Capacity: Ø40mm
Spindle Nose: A2-5
Max. Spindle speed: 3000rpm,*4500rpm
Spindle Power: 4.0kW, *5.5kW

Spindle Bore: *Ø55mm
Max. Bar Capacity: *Ø46mm
Spindle Nose: *A2-5
Max. Spindle speed: *2500rpm, *4500rpm, *5000rpm
Spindle Power: 4.0kW, *5.5kW


X Axis Travel: 300mm
Z axis travel: 200mm
X/Z axis rapid traverse: 15/15m/min, *25/25m/min


4-Station Toolpost, *Gang type tooling
Tool number: 4+2


Tailstock Type: Manual, *Hydraulic
Quill Taper: MT4
Tailstock quill travel: 80mm


Bed Type/guideway: Flat/LM
Power Capacity: 9kVA
Dimension(L×W×H): 1800×1580×1600mm
Weight(about): 1800Kg
