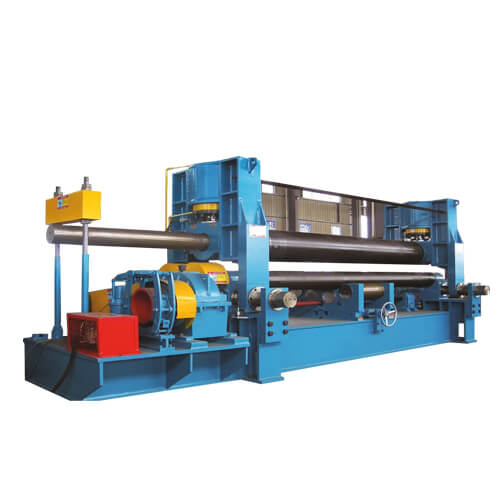

W11S Middle And Small Type Upper Roller Universal Plate Rolling Machine

  • This machine is a special equipment to roll the plate into curves, cylinders, and conical in the principle of three three-point circles. The action is as below:
  • The top roller moves vertically. Power: hydraulic oil tank. Role: put pressure on the plate to make the plate bending deformation.
  • The top roller moves horizontally. Power: electromotor. Role: adjust the horizontal distance between the top and bottom roller to make the top and bottom roller position asymmetrical to pre-pend the sheet edge and decline the length of the flat zone.
  • The bottom roller rotates. Power: electromotor. Role: supply the torque for the bending plate.
  • Opening the device drop-down and reset. Power: hydraulic oil tank. Role: take out the finished workpiece.

Features

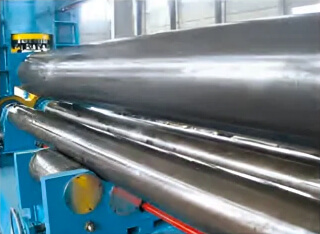

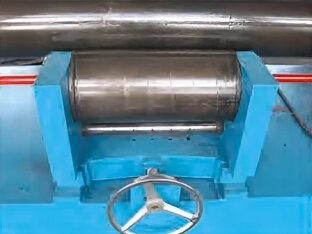

• The upper roller is designed as drum shape. Support roller install in the lower of bottom roller to help bending a perfect cylinder from thin to thick plate.
• Special bending craft, high precision pre-bending of the edge, digital control for bending process.
• Rich shape bend such as O,U, R etc.
• Cone bending device for conical bend easily.
• Whole chassis, simple ground foundation, it’s convenient to move the workplace.
• According to the role or requirement of customer, economic digital display type or TNC digital control type is optional.
• CE certificate.
