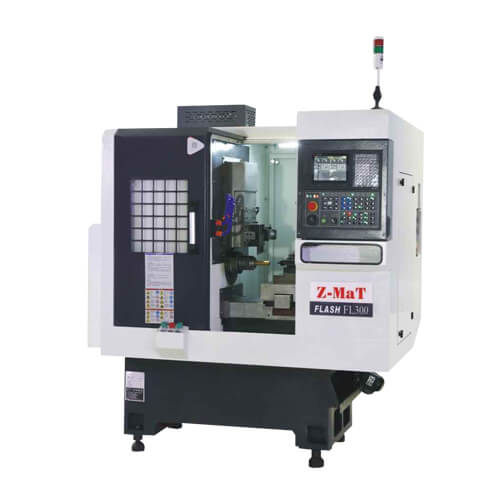

FL300-MT

Machine Characteristics
Complete bi-laterally symmetrical machine body and headstock design increases rigidity and stiffness in all movements of the machine. An added feature bonus is the compact dimensional casting, which keeps advanced performance in a smaller footprint. The FL300 flatbed CNC gang tool lathe packs a load of capacity into a small footprint. The most unique feature of the FL300 flatbed CNC gang tool Lathe is the extended work table/gang plate with 355mm of cross-feed travel. This provides plenty of capacity to mount and position a large number of separate gang blocks with tools. It also works great for applications that require live tooling. The FL300 features quality components that give the FL300 flat bed CNC gang tool lathe similar speeds and precision capabilities to our more expensive CNC lathes. Quality component providers include Schneider electronics, PMI ball screws, and Hiwin linear guides. Great capabilities at a very reasonable price – a true value in CNC turning machines. This series allows high flexibility in tooling configurations. A wide range of gang type, turret, milling, and polygon tools can be combined to fit your specific part production task.

  • Linear guideways are protected by stainless steel telescoping guards-provides maximum protection from chips and coolant and extended machine life.
  • Center-mounted ball screws are placed between the bed ways, minimizing side torque and friction. Provides cooler operation, better dynamic efficiency, and longer life.
  • Servo motors and drives on X/Z axes. The spindle can be driven by VFD or Servo.
  • Various control systems, chucks, and tool posts are available. Highly configurable to fit your needs.

Capacity

Chuck/ Collet: Pneumatic Collet
bed type/guideway: Flat/LM
Max.Swing Dia. Over Bed: Ø300mm
Max. Workpiece Length: 300mm
Max. Swing Dia. Over Slide: Ø135mm

Spindle

Spindle Bore: Ø48mm
Max. Bar Capacity: Ø40mm
Spindle Nose: A2-5
Max. Spindle speed: 3000rpm, *4500rpm
Spindle Power: 3.7/5.5 kW, *5.5/7.5kW

Spindle Bore: *Ø55mm
Max. Bar Capacity: *Ø46mm
Spindle Nose: *A2-5
Max. Spindle speed: *2500rpm, *4500rpm, *5000rpm
Spindle Power: 3.7/5.5 kW, *5.5/7.5kW

Axis

X Axis Travel: 350mm
Z axis travel: 300mm
X/Z axis rapid traverse: 25/25m/min

Tools

Toolpost type: Gang type tools,
*4-Station toolpost, *8-Station turret
No. of tool stations: 4-10

Others

Bed Type/guideway: Flat/LM
Power Capacity: 9kVA
Overall Dimension(L×W×H): 1700x1200x1550mm
Weight(about): 1800Kg
