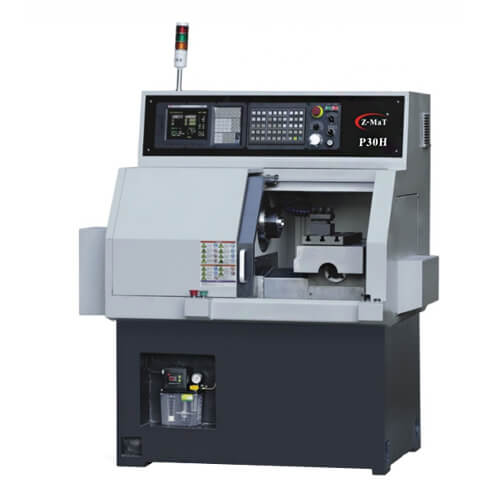

Super P30H

Machine Characteristics
SUPER P30H is with linear guideway and gang type tool which reach high accuracy and fast speed
• Spindle runout≤2μm
• Space saving, compact footprint.
• Smooth, efficient chip removal.
• Built-In spring collets – low vibration, high accuracy.
• Servo spindle motor, Bosch Rexroth linear guideway, THK ballscrew

Standard Features
• Hydraulic Collet (SP28)
• Pneumatic Collet (P30H)
• Work & Alarm Light
• Automatic Coolant System
• Automatic Lubrication System
• Gang Plate Work Table
• Tools & Tools Box

Optional Features
• Different Collets
• Different CNC Control Systems
• Parts Counter
• C Axis and Live Tooling
• Bar Feeder

Categories: , ,

Capacity

Max. swing dia. over bed: Ø300mm
Max. length of workpiece: 160mm
Max. swing dia. over slide: Ø80mm

Spindle

Spindle bore: Φ36mm
Max. dia. of through-hole: Ø30mm
Spindle nose: Ø54mm 1:1
Sindle speed: 5000rpm
Main motor power:2.2/3.7kW, *3.7/5.5kW

Spindle bore: Φ26mm
Max. dia. of through-hole: Ø20mm
Spindle nose: Ø40mm 1:1
Sindle speed: 5000rpm
Main motor power:3.7/5.5kW, *5.5/7.5kW

Axis

X axis travel: 250mm
Z axis travel: 180mm
X/Z axis rapid traverse: 20/20m/min

Toolspost

Type of tool post: Gang type
No. of tool stations: 4-6
OD Tool shank size: 16×16mm

Tailstock

N/A

Others

Bed type: Flat
Guideway type: LM
Power capacity: 6.5kVA
Overall dimension: 1420×1200×1550mm
Weight: 1400Kgs
