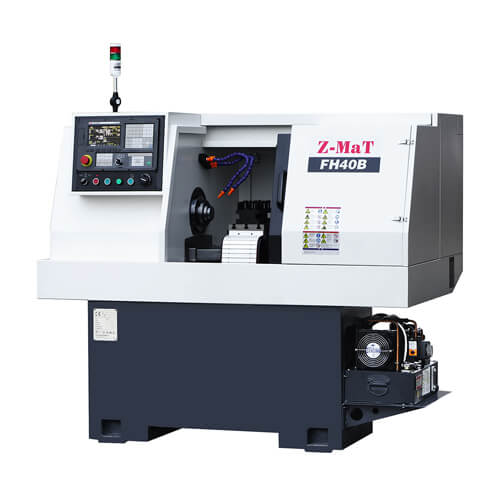

FH40B

Machine Characteristics
Center Mounted Ball Screw Assembly Reduces Friction and Side Torque – Improving Dynamic Characteristics and long-Term Machine Stability.
Telescoping, Stainless Steel Ball Screw/ Way Guards Completely Protect Slide Operation From Chips, Coolant and Debris.
Large Contact Area Between Bed Ways and Machine Carriage Promotes Stability and Accuracy.
Double Row, Cylindrical Roller Spindle Bearings Improve Rigidity on Large Machines.

Standard Features
• Manual 3-Jaw Chuck
• 4-Station Tool Post
• Work and Alarm Light
• Full Enclosure Safety Guard
• Automatic Lubrication System
• Automatic Coolant System
• Variable Frequency Drive
• Pneumatic Collet (FH30B FH40B), Gang Type Tools (FH30B)

Optional Features
• Hydraulic Chuck/ Collet
• Servo Spindle Motor/ Drive
• Different CNC Control Systems
• High Speed Spindle Unit
• Larger Spindle Bore
• C Axis and Live Tooling
• Bar Feeder

Categories: , ,

Capacity

Collet bar capacity/Chuck size: 40mm, *6”, *8″, *12”
Max swing dia over bed: Ø380mm
Max length of workpiece: 300, *450mm
Max swing dia over slide: Ø150mm

Spindle

Spindle bore: ∅48mm
Bar dia capacity: ∅40mm
Spindle speed: 3000 rpm
Main motor power: 4.0KW

Spindle Bore: *Ø62mm
Drawbar Capacity: *Ø52mm
Spindle Nose: *A2-6
Spindle speed max.: *2000rpm
Spindle Power: 4.0kW

Spindle Bore: *Ø70mm
Drawbar Capacity: *Ø60mm
Spindle Nose: *A2-6
Spindle speed max.: *2000rpm
Spindle Power: 4.0kW

Axis

X axis travel: 280, *340 mm
Z axis travel: 300, *450mm
X/Z rapid traverse: 6/9m/min

Toolspost

Type: 4-station toolpost
* Gang type
No of tool stations: 4-6nos
OD tool shank size: 20*20mm

Structure

Bed width: 240mm
Guideway type: Hard

Others

Power capacity: 6.5 KVA
Overall dimension: 1450×1200×1490mm
Weight(about): 1200Kgs
