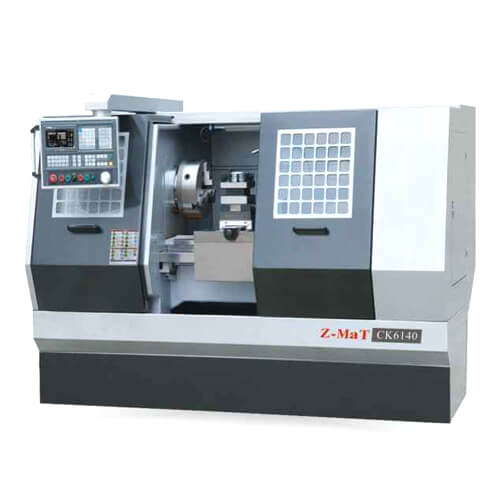

CK6140

Machine Characteristics
Heavy headstock & large bore. Heavy quality cast base & lathe bad, high torque with good spindle speed, hardened & ground bed ways, good for turning long work pieces, centralized, lubrication system.

Standard Features
• 3-Jaw Chuck or Collet
• 4-Station Tool Post
• Manual Tail Stock
• Center Sleeve
• Automatic Lubrication System
• Automatic Coolant System

Optional Features
• Different Chucks
• Different CNC Control Systems
• Hydraulic Tail Stock
• Higher Spindle Speed
• Larger Diameter Spindle Bore

Categories: , ,

Capacity

Chuck size: Collet, *10”
Max Swing Dia. Over Bed: ∅420mm
Max Workpiece Length: 750mm/1000mm/1500mm
Max Swing Dia. Over Slide: ∅210mm

Spindle

Spindle bore: ∅62mm
Bar Dia. Capacity: ∅52mm
Spindle nose: A2-6
Spindle speed: 2000 rpm, *4000rpm

Spindle bore: ∅22mm
Bar Dia. Capacity: ∅46mm
Spindle nose: *C6
Spindle speed: 1600 rpm
Main motor power: 7.5KW

Spindle bore: ∅75mm
Bar Dia. Capacity: ∅65mm
Spindle nose: *A2-8
Spindle speed: 1600 rpm

Axis

X axis travel: 320mm
Z axis travel: 750mm/1000mm/1500mm
X/Z rapid traverse: 6/9m/min

Toolspost

Type of toolpost: 4-station toolpost,*gang type
No of tool stations: 4nos
Tool shank size: 25×25mm

Tailstock

Type of tailstock: Manual, *Hydraulic
Taper of tailstock quill: MT5
Travel of tailstock quill: 130mm
Travel of tailstock: 600mm

Structure

Bed width: 400mm
Guideway type: Hardway

Others

Power capacity: 14kVA
Overall dimension(LxWxH): 2430×1200×1600mm
Weight(about): 2800Kg
