Configuration of Bending Machine

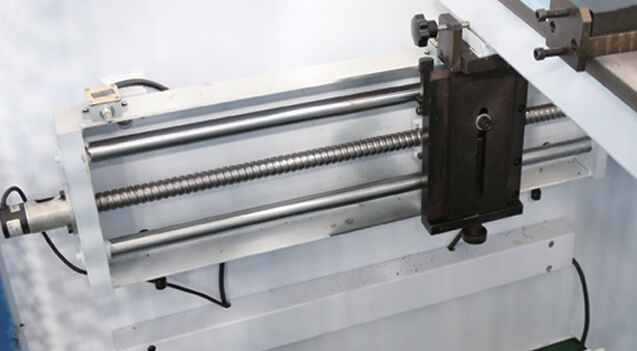

Back Gauge
Ball Screw and Linear Guide
Mechanical Compensation Table (Optional)
Motor
Ordinary Clamp

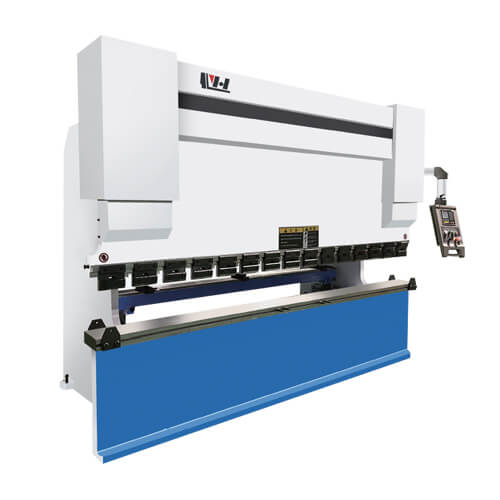

WC67Y Series Torsional Axis Synchronous Press Brake
1. The frame is entirely welded with steel plates, machined integrally to ensure precision by CNC horizontal boring machine.
2. Hydraulic top-drive, stepless pressure adjustment and high quality sealing rings imported from overseas to ensure the machine tools reliability.
3. Mechanical synchronous mechanism and the complex compensation are designed os as to raise the workpieces precision.
4. The stroke and distance of the back gauge is adjusted electrically and manually. The adjustment is displayed digital meters.
5. Inch, single, continuous operation mode designed for the machine, dwell time was controlled by time relays.

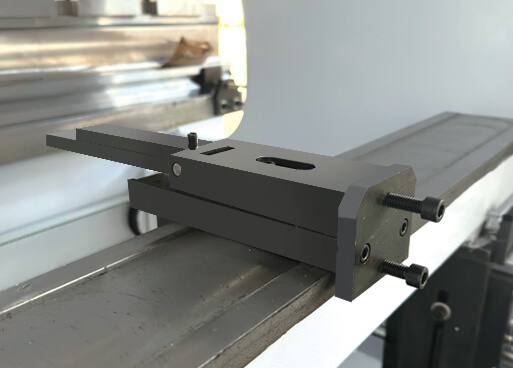

Back Gauge
Ball Screw and Linear Guide

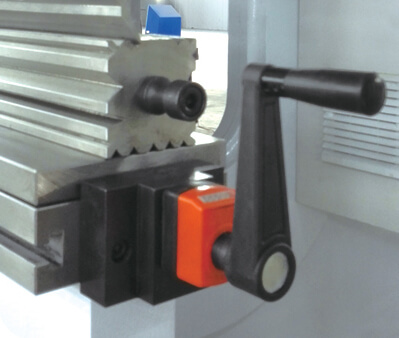

Mechanical Compensation Table (Optional)

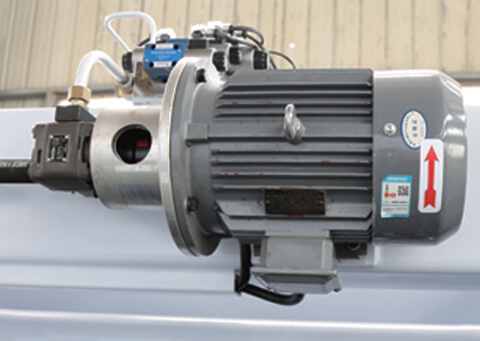

Motor

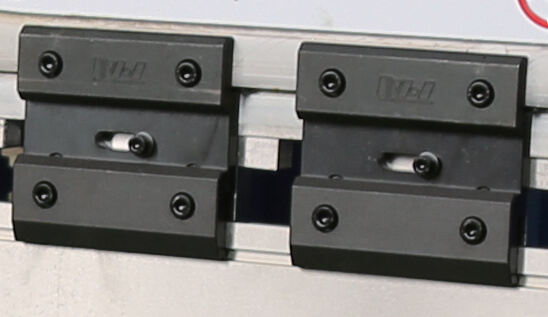

Ordinary Clamp
ESTUN-E21

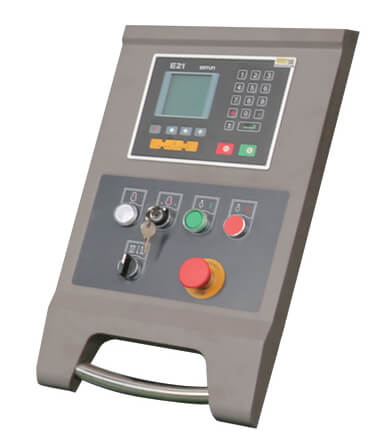

ESTUN-E21 Digital Display System (Standard)
DA-41
DA-41T Numerical Control System (Optional)
ESTUN-E300P

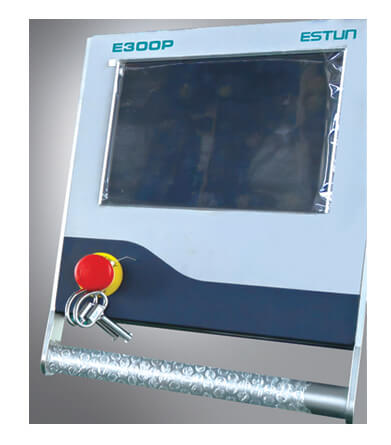

ESTUN-E300P Numerical Control System (Optional)
