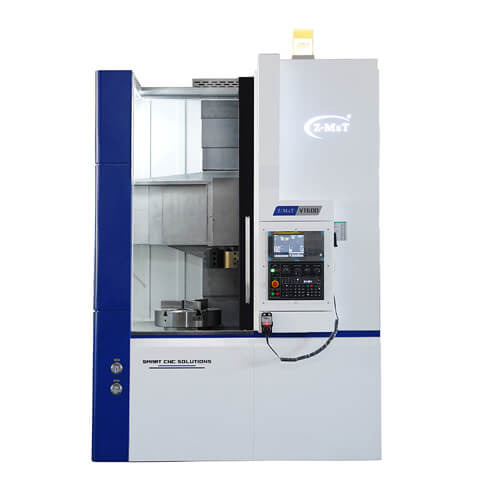

VT600

Vertical CNC Lathe
Excellent Option for large, heavy, thin-walled or complicated parts.

Machine Characteristics
• Standard 8-Station Turret-Stands up for versatile production requirements.
• Compact design, Plus, square base casting minimizes floor space requirements and increases anti-vibration forces.
• High speed spindle unit with powerful servo drive motor-offers high speed finish cutting, AND low speed heavy duty cutting in the same machine.

Categories: , ,

Capacity

Max. Swing diameter.: ∅750mm
Max. cutting diameter: ∅600mm
Max. cutting height: 600mm

Chuck

Chuck type: Hydraulic chuck
Chuck size: 21″, *18″

Spindle

Max. Spindle speed: 1000rpm * Gear box
Main motor power: 15.0kW/ 18.5kW, *18.5kW/ 22.0kW
Spindle Nose: A2-11

Turret

Turret center height: 160mm
No. of tools: 8-station nos
Tool shank size: 40x40mm

Axis

X Axis Travel: 450(+400:-50)mm
Z Axis Travel: 600mm
X/ Z Rapid Traverse: 15/ 18 m/min

Accuracy

Positioning X/Z: 0.015/0.015mm
Repeatability X/Z: 0.005/0.008mm
Machining: IT6

Others

Power Consumption: 35kVA
Overall Dimension(L ×W ×H): 2300 ×2000 ×3400mm
Weight(about): 11500Kgs
