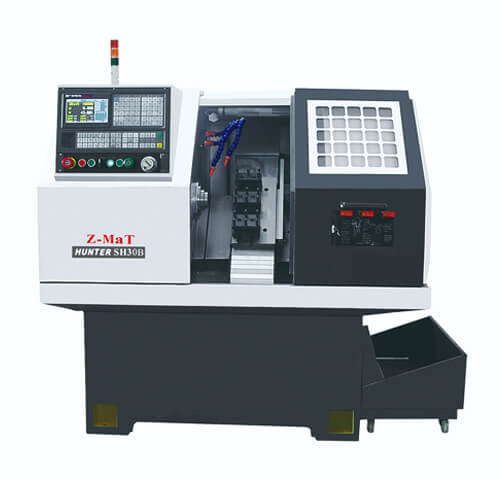

Machine Characteristics
Low Friction Turcite-B Plastic Way Coating, Optional C Axis and Live Tooling, Large Contact area Between ways and carriage – optimized for interrupted cutting cycles.
45˚ degree stant bed structure offers efficient chip removal and easy operator access.
Compact structure, modular design and high performance to cost ratio.
• Ergonomically designed adjustable panel.
• Center-mounted ball screw-less torsion and better accuracy.
• The economical slant bed.
• Low friction Turcite-B plastic Way Coating Optional C axis and Live tooling.
• Large contact area between ways and carriage-allows for interrupted cutting cycles.

Standard Features
• Pneumatic Spring Collet
• Gang Type Tools
• Frequency Inverter
• Work and Alarm Light
• Full Enclosure Safety Guard
• Automatic Lubrication System
• Automatic Coolant System

Optional Features
• Hydraulic Chucks
• Spring Collet System
• Hydraulic Tailstock
• Different CNC Control Systems
• Different Spindle


Max Swing Over Bed: ∅250mm
Max Workpiece piece: 200mm
Max Swing Over Slide: ∅80mm


Spindle bore: ∅37mm
Bar Capacity: ∅32mm
Spindle speed: 3000 rpm
Main motor power: 3.0kW


X axis travel: 300mm
Z axis travel: 200mm
X/Z rapid traverse: 8/9m/min


Type: Gang type
No of tool stations:4-6
OD tool shank size:16×16mm




Slant bed degree: 45°
Guideway type: Hard
Overall dimension: 1550×1100×1400mm
