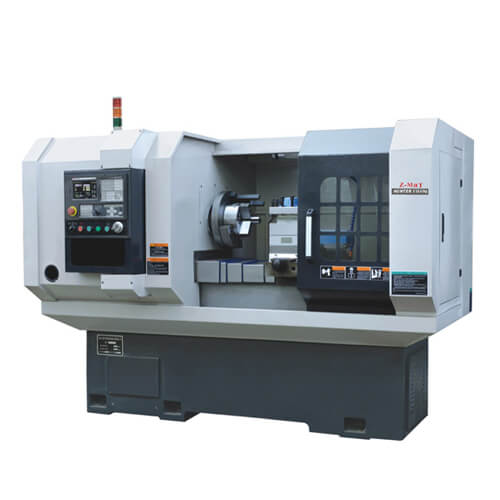

Machine Characteristics
Center Mounted Ball Screw Assembly Reduces Friction and Side Torque – Improving Dynamic Characteristics and long-Term Machine Stability.
Telescoping, Stainless Steel Ball Screw/ Way Guards Completely Protect Slide Operation From Chips, Coolant and Debris.
Large Contact Area Between Bed Ways and Machine Carriage Promotes Stability and Accuracy.
Double Row, Cylindrical Roller Spindle Bearings Improve Rigidity on Large Machines.

Standard Features
• Manual 3-Jaw Chuck
• 4-Station Tool Post
• Work and Alarm Light
• Full Enclosure Safety Guard
• Automatic Lubrication System
• Automatic Coolant System
• Variable Frequency Drive
• Pneumatic Collet (FH30B FH40B), Gang Type Tools (FH30B)

Optional Features
• Hydraulic Chuck/ Collet
• Servo Spindle Motor/ Drive
• Different CNC Control Systems
• High Speed Spindle Unit
• Larger Spindle Bore
• C Axis and Live Tooling
• Bar Feeder


Chuck size: 8″, *10”
Max swing dia over bed: ∅420mm
Max Workpiece Length: 450mm
Max Swing Over Slide: ∅290mm


Spindle bore: ∅62mm
Bar dia capacity: ∅52mm
Spindle nose: A2-6
Spindle speed: 2000 rpm. *4000rpm
Main motor power: 7.5kW, *11KW

Spindle Bore: *Ø81mm
Drawbar Capacity: *Ø70mm
Spindle Nose: *A2-8
Spindle speed max.: *1600rpm, *2500rpm
Spindle Power: 7.5kW, *11kW


X axis travel: 320mm, *380mm
Z axis travel: 450mm
X/Z rapid traverse: 6/9m/min


Type: 4-station toolpost
No of tool stations: 4-5nos
OD tool shank size: 25x25mm


Bed width: 400mm
Guideway type: Hard


Power capacity: 9.5kVA
Overall dimension: 2300×1300×1700mm
Weight(about): 2600Kgs
