Machine Characteristics

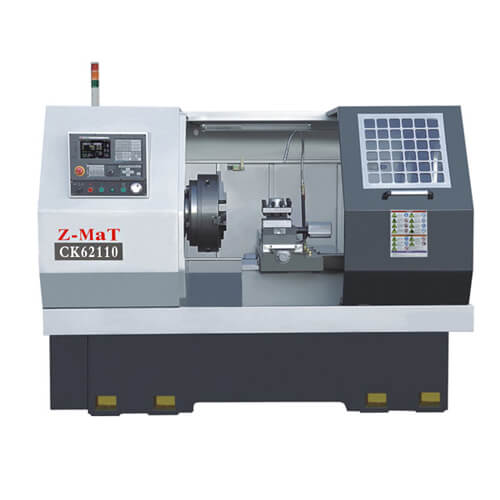

The large swing radius on the CK62110 lathe provides an efficient option for turning rocker arms, or other long, narrow diameter parts.
• Adopting mechatronics design, matured structure, easy for operation.
• Casting bed with second aging treatment assures long term accuracy and reliability.
• High precision ball screws are mounted in middle, eliminating friction torque.
• Spindle uses double-row roller, double direction thrust angle bearing for high accuracy, high load and high speed machining.


Chuck size: 10”, *12″,*15″
Max. swing over way Gap: ∅1100mm
Max. swing over way Cover:∅ 400mm
Max. cutting length in the gap: 250mm
Max. turning length: 400mm


Spindle Bore: ∅55mm, *∅81mm,*∅105mm,
Max. Spindle speed: 1600rpm *800rpm
Spindle power: 5.5Kw, *7.5kW


X Axis Travel: 320mm
Z Axis Travel: 400mm
X/ Z Rapid Traverse: 6/ 9 m/min


Turret type: 4-Station Toolpost


Overall Dimension(L ×W ×H) : 2100 ×1350 ×1800mm
Weight(about): 2300Kgs
