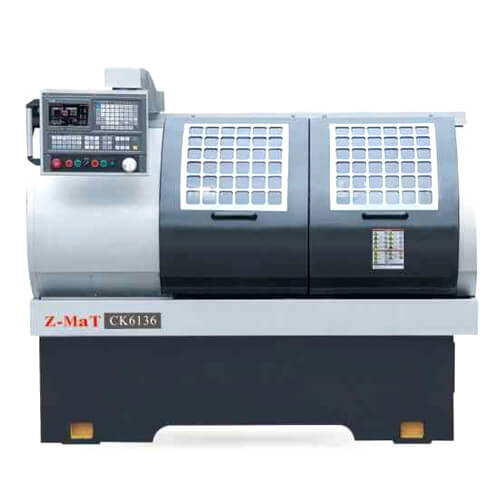

CK6136

Machine Characteristics
Heavy headstock & large bore. Heavy quality cast base & lathe bad, high torque with good spindle speed, hardened & ground bed ways, good for turning long work pieces, centralized, lubrication system.

Standard Features
• 3-Jaw Chuck or Collet
• 4-Station Tool Post
• Manual Tail Stock
• Center Sleeve
• Automatic Lubrication System
• Automatic Coolant System

Optional Features
• Different Chucks
• Different CNC Control Systems
• Hydraulic Tail Stock
• Higher Spindle Speed
• Larger Diameter Spindle Bore

Categories: , ,

Capacity

Chuck size: Collet, *8”
Max Swing Dia. Over Bed: ∅350mm, *∅400mm
Max Workpiece Length: 500mm
Max Swing Dia. Over Slide: ∅160mm, *∅200mm

Spindle

Spindle bore: ∅65mm
Bar Dia. Capacity: ∅46mm
Spindle nose: C6
Spindle speed: 1600 rpm
Main motor power: 5.5KW

Spindle bore: ∅75mm
Bar Dia. Capacity: ∅65mm
Spindle nose: *A2-8
Spindle speed: 1600 rpm

Axis

X axis travel: 320mm
Z axis travel: 500mm
X/Z rapid traverse: 6/9m/min

Toolspost

Type of toolpost: 4-station toolpost,*gang type
No of tool stations: 4nos
Tool shank size: 20×20mm

Tailstock

Type of tailstock: Manual, *Hydraulic
Taper of tailstock quill: MT4
Travel of tailstock quill: 100mm
Travel of tailstock: 400mm

Structure

Bed width: 300mm
Guideway type: Hardway

Others

Power capacity: 11kVA
Overall dimension(LxWxH): 1950×1220×1620mm
Weight(about): 1800Kg
