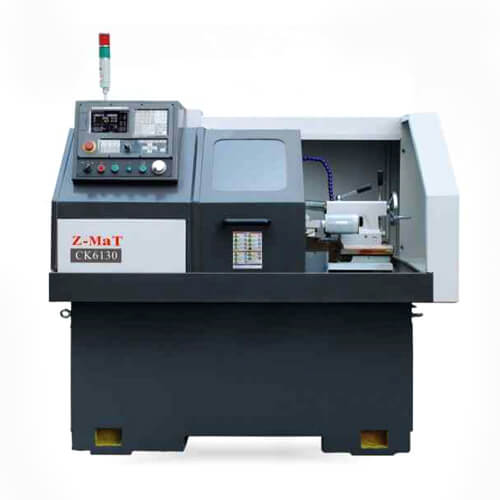

CK6130

Machine Characteristics
Heavy headstock & large bore. Heavy quality cast base & lathe bad, high torque with good spindle speed, hardened & ground bed ways, good for turning long work pieces, centralized, lubrication system.

Standard Features
• 3-Jaw Chuck or Collet
• 4-Station Tool Post
• Manual Tail Stock
• Center Sleeve
• Automatic Lubrication System
• Automatic Coolant System

Optional Features
• Different Chucks
• Different CNC Control Systems
• Hydraulic Tail Stock
• Higher Spindle Speed
• Larger Diameter Spindle Bore

Categories: , ,

Capacity

Chuck size: Collet, *6”
Max Swing Dia. Over Bed: ∅300mm
Max Workpiece Length: 400mm(Collet), 300mm(Chuck)
Max Swing Dia. Over Slide: ∅150mm

Spindle

Spindle bore: ∅48mm
Bar Dia. Capacity: ∅40mm
Spindle nose: ∅90 1:4
Spindle speed: 3000 rpm
Main motor power: 3.0KW, *4.o

Spindle bore: ∅63mm
Bar Dia. Capacity: ∅53mm
Spindle nose: *A2-6
Spindle speed: 2000 rpm, *4000rpm

Axis

X axis travel: 250mm
Z axis travel: 400mm
X/Z rapid traverse: 6/9m/min

Toolspost

Type of toolpost: 4-station toolpost,*gang type
No of tool stations: 4nos
Tool shank size: 20×20mm

Tailstock

Type of tailstock: Manual, * Pneumatic, *Hydraulic
Taper of tailstock quill: MT3 *MT4
Travel of tailstock quill: 100mm
Travel of tailstock: 350mm

Structure

Bed width: 260mm
Guideway type: Hardway

Others

Power capacity: 9kVA
Overall dimension(LxWxH): 1540×1010×1570mm
Weight(about): 1300Kg
