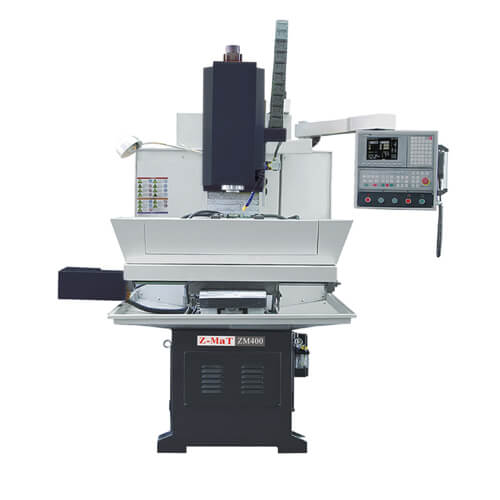

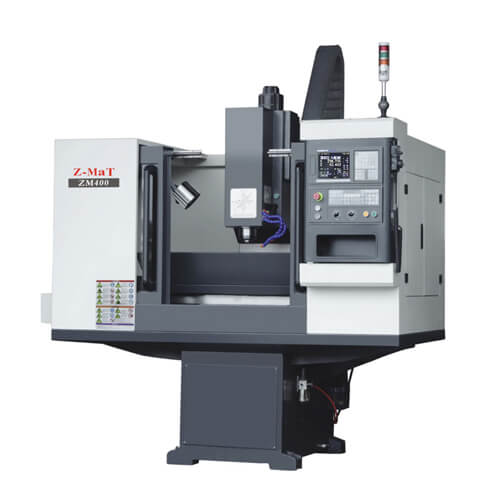

ZM400

Tool Room Functionality
These versatile, universal features use machines were designed for customers who need machines for general use-or small space production. With their compact design and “easy-to-use” functionality these accurate but heavy-duty small-sized production quality machines will fit a wide range of applications-from tool room settings, to lab room R&D, small shop production or personal use in the family garage.
• Good quality hard guideway on X/Y/Z axes-provide long worklife and rigidity
• High quality castings provides a solid structure and foundation
• Full enclosed way covers is optional
• Direct drive servo motors on all axes

Categories: ,

Table

Table Size: 1000×250 mm
T Slot: 14×3×55 mm
Max. load: 250 Kgs
Spindle nose to table: 210 mm
Spindle center to column: 375 mm

Travel

Guideway Type: Box Type
X/ Y/ Z axis travel: 400/ 250/ 300mm
X/ Y / Z axis rapid traverse: 9/ 9/ 9 m/min

Spindle

Spindle type: BT30
Spindle servo motor: 2.2kW
Max. Spindle speed: 100-3000rpm
Spindle nose to table: 210mm
Spindle center to column: 375mm

Dimension& Weight

Overall Dimension(L×W×H): 1500×1500×2200 mm
Weight(about): 1700 Kgs
