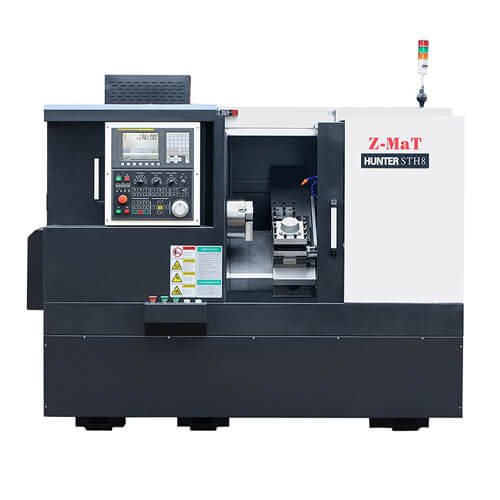

STH8

Machine Characteristics
STH CNC lathes are designed to provide a cheaper and easier machining option while providing real production capacity and accuracy. Perfect for R & D, education, manufacturing or just getting a business started. STH Series CNC lathes are a very affordable option that will allow you to accomplish your machining tasks easier and faster.

  • 30° slant bed-efficient chip flow and easier operator access.
  • Ergonomically designed adjustable panel.
  • Center-mounted ball screw-less torsion and better accuracy.
  • STH10 and STH12 have cylindrical roller spindle bearings.
  • The most economical slant bed with tailstock in the market

Standard Features

  • Manual 3-Jaw Chuck
  • 4-Station Tool Post + gang plate
  • Manual Tailstock
  • Automatic Lubrication System
  • Automatic Coolant System

Optional Features

  • Hydraulic Chucks
  • Spring Collet System
  • Hydraulic Tailstock
  • Different CNC Control Systems
  • Different Spindle

Categories: , , Tags: ,

Capacity

Chuck size: 8”
Max Swing Over Bed: ∅350mm
Max workpiece length: 300mm, *400mm(collet)
Max swing dia over slide: ∅200mm

Spindle

Spindle Bore: Ø48mm
Drawbar Capacity: Ø40mm
Spindle Nose: A2-5
Spindle speed max.: 3000rpm, *4500rpm
Spindle Power: 5.5kW

Spindle Bore: *Ø62mm
Drawbar Capacity: *Ø52mm
Spindle Nose: *A2-6
Spindle speed max.: *2000rpm,*4000rpm
Spindle Power: 5.5kW

Axis

X axis travel: 280mm
Z axis travel: 300mm, *400(collet)
X/Z rapid traverse: 8/12m/min

Toolspost

Type: 4-station toolpost+Gang type tooling
No of tool stations: 4-8nos
OD tool shank size: 20×20mm

Tailstock

Type of Tailstock: Manual, *Pneumatic, *Hydraulic
Tailstock quill Taper: MT4
Tailstock Quill Travel: 100mm
Tailstock Travel: 400mm

Others

Slant bed degree: 30°
Guideway type: Hard
Power capacity: 8kVA
Overall dimension: 2150×1450×1800mm
Weight(about): 2400Kg
