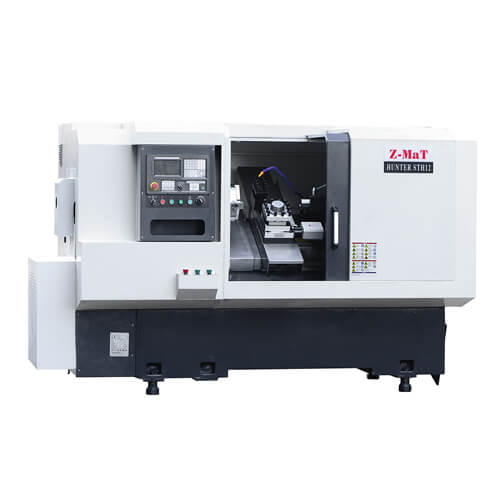

STH12

Machine Characteristics
STH CNC lathes are designed to provide a cheaper and easier machining option while providing real production capacity and accuracy. Perfect for R & D, education, manufacturing or just getting a business started. STH Series CNC lathes are a very affordable option that will allow you to accomplish your machining tasks easier and faster.
• 30° slant bed-efficient chip flow and easier operator access.
• Ergonomically designed adjustable panel.
• Center-mounted ball screw-less torsion and better accuracy.
• STH10 and STH12 have cylindrical roller spindle bearings.
• The most economical slant bed with tailstock in the market

Standard Features
• Manual 3-Jaw Chuck
• 4-Station Tool Post + gang plate
• Manual Tailstock
• Automatic Lubrication System
• Automatic Coolant System

Optional Features
• Hydraulic Chucks
• Spring Collet System
• Hydraulic Tailstock
• Different CNC Control Systems
• Different Spindle

Categories: , ,

Capacity

Chuck size: 12”, *15″
Max Swing Over Bed: ∅520mm
Max length of workpiece: 600mm
Max swing dia over slide: ∅280mm

Spindle

Spindle Bore: Ø105mm
Drawbar Capacity: Ø91mm
Spindle Nose: A2-11
Spindle speed max.: 1000rpm, *1800rpm
Spindle Power: 11kW

Spindle Bore: *Ø120mm
Drawbar Capacity: *Ø110mm
Spindle Nose: *A2-11
Spindle speed max.: *1000rpm
Spindle Power: 11kW,*15

Axis

X axis travel: 300mm
Z axis travel: 750mm(between two centers)
X/Z rapid traverse: 9/12m/min

Toolspost

Type: 4-station toolpost+Gang type tooling
No of tool stations: 4-6nos
OD tool shank size:32*32mm

Tailstock

Type of tailstock: Manual, *Hydraulic
Taper of tailstock quill: MT5
Travel of tailstock quill: 100mm
Travel of tailstock: 650mm

Others

Slant bed degree: 30°
Guideway type: Hard
Power capacity:15 KVA
Overall Dimension(L×W×H): 2930×1510×18900mm
Weight(about): 3300Kgs
