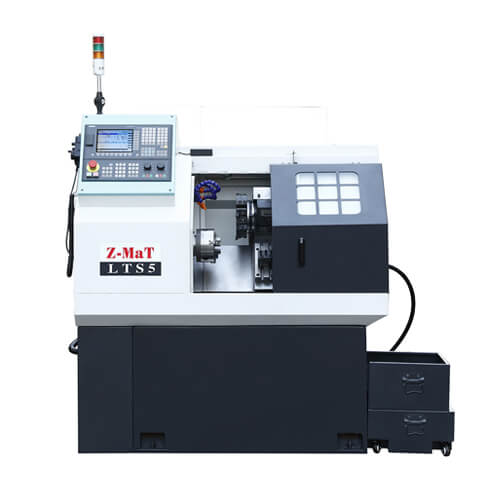

LTS5

Fit Through Door
CNC Lathes, Innovative, Heavy Cast Base-With Narrow Footprint.
• Perfect for getting through narrow halls and into small spaces.
• Up and into skyscrapers or down to a basement laboratory-or, maybe even into your garage.

Categories: > LTS5, NC Lathe Machine, Tool Room CNC Machines

Capacity

Chuck/Collet: 6″ Manual chuck. * Hydraulic chuck
Max. swing over way cover: ∅300mm
Max. cutting length: Turret220, Gang type tool 320
Max. swing. Over slide: ∅150mm

Spindle

Spindle type: A2-4
Spindle bore: ∅30mm
Spindle speed: 3000rpm
Main motor power: 2.2kW

Axis

X Axis Travel: 200mm
Z Axis Travel: 320mm
X/ Y Rapid Traverse: 6/ 9 m/min

Tools

Turret type: Gang type tool, *Quick change toolpost, *8-station turret

Tailstock

Tailstock Type: Manual, *Hydraulic
Tailstock tapper: MT4
Tailstock quill travel: 80mm

Others

Overall Dimension(L ×W ×H): 1300×820×1650mm
Weight(about): 1500Kgs
