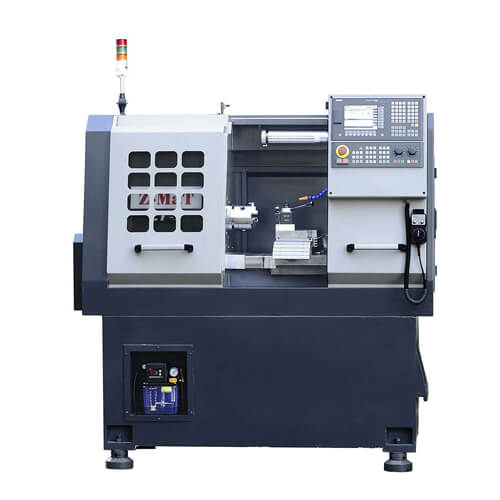

LTF5

Fit Through Door
CNC Lathes, Innovative, Heavy Cast Base-With Narrow Footprint.
• Perfect for getting through narrow halls and into small spaces.
• Up and into skyscrapers or down to a basement laboratory-or, maybe even into your garage.

Categories: > LTF5, NC Lathe Machine, Tool Room CNC Machines

Capacity

Chuck/Collet: ∅160mm Manual chuck
Max. swing over way cover: ∅250mm
Max. cutting length: 300mm
Max. swing. Over slide: ∅140mm

Spindle

Spindle type: A2-4
Spindle bore: ∅30mm
Spindle speed: 3000rpm
Main motor power: 3.7kW

Axis

X Axis Travel: 160mm
Z Axis Travel: 300mm
X/ Y Rapid Traverse: 8/ 12 m/min

Tools

Turret type: Quick Change Toolpost

Tailstock

Tailstock Type: Manual, *Hydraulic
Tailstock tapper: MT3
Tailstock quill travel: 80mm

Others

Overall Dimension(L ×W ×H): 1650×820×1800mm
Weight(about): 1300Kgs
