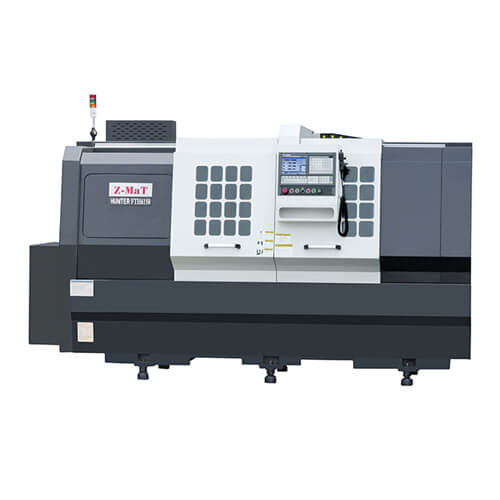

FTH6150

Machine Characteristics
Competetive priced CNC Turning Center – when you need a high quality CNC lathe that has BOTH – a high quality toolpost and tailstock. Built atop the uniquely designed solid cast base and lathe bed found in the larger FTH lathe models
• The tailstock is set on its own guide way, parallel to the main bed ways. This structure is highly rigid and accurate.
• Center mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
• Servo drives on X/Z axes. Spindle can be driven by VFD or Servo.
• Various control systems, chucks and tool mounting systems are available.

Standard Features
• Manual 3-Jaw Chuck
• 4-Station Tool Post
• Manual Tailstock
• Ergonomic Operator Panel Design & MPG
• Automatic Lubrication System
• Automatic Coolant System
• Work Lamp & Built-In Safety Features

Optional Features
• Different Chucks
• 8-Station Turret
• Different Control Systems
• Hydraulic Tailstock
• Bar Feeder
• C Axis & Live Tooling
• Steady Rest & Hydraulic Follow Rest
• Gear Box

Categories: , ,

Capacity

Chuck Size: 12″,
Max.Swing Dia. Over Bed: Ø500mm
Max. Workpiece Length(center to center): 750mm/ 1000mm/ 1500mm/2000mm
Max. Swing Dia. Over Slide: Ø290mm

Spindle

Spindle Bore: Ø81mm
Max. Bar Capacity: Ø70mm
Spindle Nose: A2-8
Max. Spindle speed: 1600rpm, *2500rpm
Spindle Power: 7.5kW, *11.0kW

Spindle Bore: *Ø105mm
Max. Bar Capacity: *Ø91mm
Spindle Nose: *A2-11
Max. Spindle Speed: *1000rpm,*2000rpm
Spindle Power: *7.5kW, *11.0kW

Spindle Bore: *Ø120mm
Max. Bar Capacity: *Ø110mm
Spindle Nose: *A2-11
Max. Spindle Speed: *1000rpm
Spindle Power: *7.5kW, *11.0kW

Axis

X Axis Travel: 320mm
Z axis travel: 750mm/ 1000mm/ 1500mm/ 2000mm
X/Z axis rapid traverse: 9/ 15 m/min

Toolspost

4-Station Toolpost, *8-Station Turret
No. of tool stations: 4+2, *8
Tool Shank Size: 32x32mm

Tailstock

Type: Manual, *Hydraulic
Quill Taper: MT5
Tailstock Quill Travel: 130mm
Tailstock Travel: 600/ 850/ 1350/ 1850mm

Others

Bed Type/guideway: Flat/LM
Power Capacity: 15KVA
Overall Dimension(L×W×H): 2725x1600x1850mm/ 2975x1600x1850mm/ 3450x1600x1850mm/ 3970x1600x1850mm
Weight(about): 3300Kgs/ 3550Kgs/ 4050Kgs/ 4650Kgs
