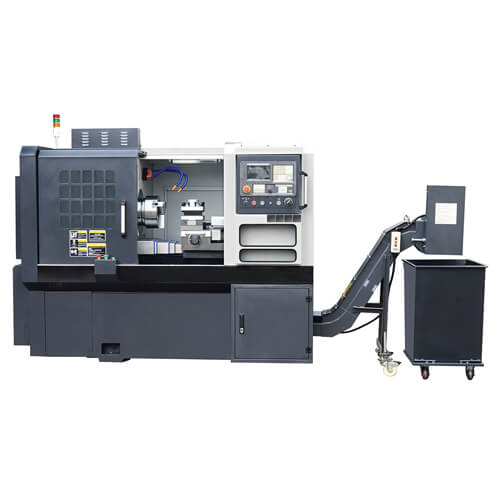

Machine Characteristics
Center Mounted Ball Screw Assembly Reduces Friction and Side Torque – Improving Dynamic Characteristics and long-Term Machine Stability.
Telescoping, Stainless Steel Ball Screw/ Way Guards Completely Protect Slide Operation From Chips, Coolant and Debris.
Large Contact Area Between Bed Ways and Machine Carriage Promotes Stability and Accuracy.
Double Row, Cylindrical Roller Spindle Bearings Improve Rigidity on Large Machines.

Standard Features
• Manual 3-Jaw Chuck
• 4-Station Tool Post
• Work and Alarm Light
• Full Enclosure Safety Guard
• Automatic Lubrication System
• Automatic Coolant System
• Variable Frequency Drive
• Pneumatic Collet (FH30B FH40B), Gang Type Tools (FH30B)

Optional Features
• Hydraulic Chuck/ Collet
• Servo Spindle Motor/ Drive
• Different CNC Control Systems
• High Speed Spindle Unit
• Larger Spindle Bore
• C Axis and Live Tooling
• Bar Feeder


Chuck size: 8″
Max swing dia over bed: ∅350mm
Max Workpiece Length: 300mm
Max Swing Over Slide: ∅210mm


Spindle bore: ∅55mm
Bar dia capacity: ∅46mm
Spindle nose: C6
Spindle speed: 1600 rpm
Main motor power: 5.5KW

Spindle Bore: *Ø62mm
Drawbar Capacity: *Ø52mm
Spindle Nose: *A2-6
Spindle speed max.: *2000rpm
Spindle Power: 5.5kW


X axis travel: 320mm
Z axis travel: 300mm(chuck)
X/Z rapid traverse: 6/9m/min


Type: 4-stations toolpost
*Gang type
No of tool stations: 4-5
OD tool shank size: 20x20mm


Bed width: 340mm
Guideway type: Hard


Power capacity: 7KVA
Overall dimension: 1900×1200×1600mm
Weight(about): 1600Kgs
