QC11Y Series

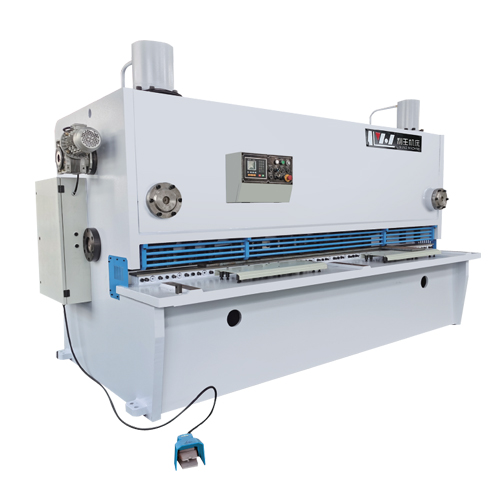

QC11Y Series Hydraulic Guillotine Shearing Machine
1. The whole machine adopts the whole steel plate welding structure, the comprehensive treatment has good rigidity and stability.
2. The upper and lower blades are rectangular blades, with quick electric adjustment of blade clearance.
3. Shear stroke is controlled by time relay, and electric control adjusts shear angle.
4. The rear stopper runs in the front and back direction, driven by the motor and displayed by the E21S system, with fine tuning function.

Detail Presentation

Estun E21S

Blade Clearance Adjustment

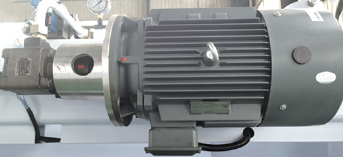

Hydraulic System


Ball Screw and Linear Guide of Back Gauge


Technical Parameters
