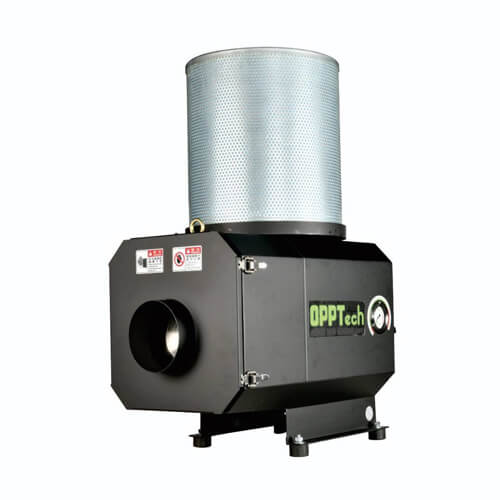

OPPTECH Oil Mist Recycling And Air Cleaner - OT Series

Protect environment
OT series, with its specifically patented design for machine tool operation, can eliminate mist, smoke, and odor. The rate of oil capture can reach over 95%. Its efficiency is high.
Purify the environment and avoid mist pollution.
The OT series adopts a high-efficiency HEPA filter to remove the smell of oil mist, purify the air, and create a clean working environment.
Less Maintenance Required
Easy-to-Read Gauge: Indicates normal operation and when filter elements need maintenance.
Reduce energy consumption
Use a high-efficiency centrifugal fan. It can work smoothly, and its air volume is large with a small horsepower.

OMS Series

OPPT-myair sensor

Features of OPPT-myair sensor –is equipped with digital PM2.5 value display to comply with national policies.
Records motor operation time and features loT functionality (still developing- provides clear air pollution status display)
Ensures timely maintenance to safeguard employee health
Operating records, with corresponding indicators lighting up at 1000 hours, 2000 hours, 3000 hours, and 4000 hours of cumulative operation. The timer can be reset (RESET) to zero after filter replacement for clear tracking of operating time.

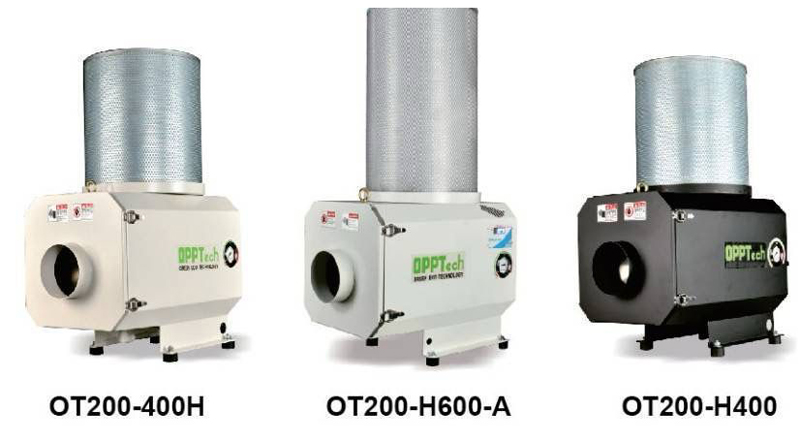

OT200-H600-A

Model	Power	Kw	Maximum Flow Rate (m3/min) (50HZ / 60HZ)	Static Pressure (Kpa) (50HZ / 60HZ)	Operating Noise db(A) (50HZ / 60HZ)	Collection Efficiency	Weight (kg)	Suction Inlet Diameter	Filtration Effect (Applicable Space)
OT150-H300	AC220V / AC380V 50/60Hz	0.2	13/16.5	1.02/1.17	64/68	99.95% EURO H13	42	ø 150	≥7m3
OT200-H400	AC220V / AC380V 50/60Hz	0.4	19/21.5	1.28/1 .48	65/69	99.95% EURO H13	47	ø 150	≥10m3
OT300-H400	AC220V / AC380V 50/60Hz	1	1.66/1.96	1.66/1.96	68/73	99.95% EURO H13	65	ø 200	≥18m3
