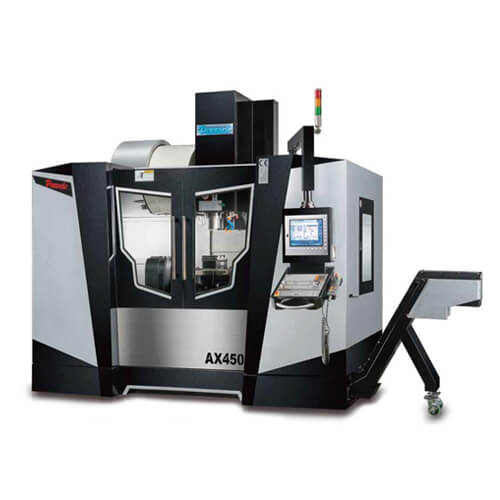

AX450
High-Tech Expertise in 5-axis Machining

5 – AXIS Machining Center:
The major structure parts are manufactured from high quality Meehanite cast iron, tempered for stress relief. The spindle head elevation employs a pneumatic type balance system to minimize the spindle head vibration during moving.

The 5-axis synchronize machining saves machining time reduces repetitive workpiece setup and error, while dramatically increasing machining and accuracy.

Pinnacle AX320/ AX450 are proven to be super machines for high efficiency and accuracy.

Features:

  • 760 x 610 x 560 mm Travel
  • A Axis Tilt 220° (±110°)
  • C Axis Rotary 360°
  • Rapid Feedrate 30/30/24
  • 9/12 Kw Spindle Motor
  • ISO40 Spindle Taper
  • X, Y & Z Axis Linear Way

Categories: , ,

Rigid, Stable, Accurate

Rigid, Stable, Accurate

RUGGEDLY CONSTRUCTED THROUGHOUT TO PROVIDE LIFETIME ACCURACY YEAR AFTER YEAR
  • The major structural parts are manufactured form high quality Meehanite cast iron (GB 300),
    tempered for stress relief with hardness over 190HB.
  • Roller type linear ways on X, Y, Z axis increased stability.
  • X, Y, Z axis are transmitted with class C3, Ø40mm ball screws.
COOLANT THROUGH BALL SCREW (STANDARD)

Coolant through ball screws on X, Y axis minimizes thermal deformation and backlash, while ensuring smooth motion during rapid traverse.

PNEUMATIC BALANCE SYSTEM

The Z-axis is pneumatic counter-balanced via high response pneumatic cylinders. Plus an air reservoir tank to boost the balancing performance, ensuring fast and stable Z-axis movement, giving high surface finish.

COOLING SYSTEM TO SPINDLE

The spindle oil cooler permits the spindle to keep a constant temperature running and ensures long service life. It also provides high efficiency machining and high accuracy.

5 Axes Rotary Table

|



  • Rotary Table diameter Ø320 / Ø450mm
  • Table rotation and tilting are driven by servo motor
  • Positioning accuracy, A/C-axis: 15″/10″
  • Repeatability accuracy, A/C-axis: 10″/8″

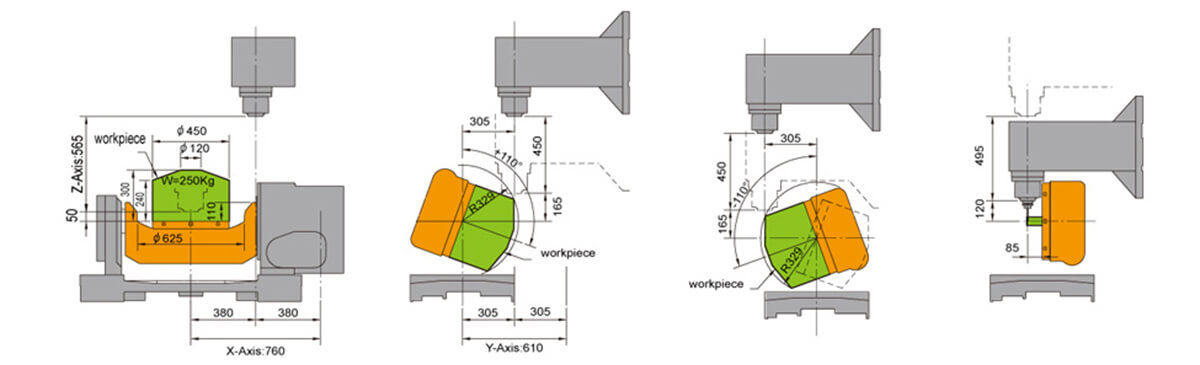

WORKING CAPACITY AX450



Quality & Efficiency



SCREW CHAIN SCRAPING
Steel O X O
Casting Iron X O X
Aluminum X X O
Copper X X O
Mixture X O X
Not Iron Material X O X
BALL BAR DIAGNOSTICS
AUTOMATIC LUBRICATION SYSTEM

The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ball screws and bearings.

SPLASH GUARD

The full-enclosed splash guard meets environmental protection and CE requirements. It offers users a comfortable working environment.

Specifications

MODEL AX450
TABLE
Table Size (mm) Ø450
Travel Ranges (X x Y x Z mm) 760 x 610 x 560
T Slot Size (Size x deg ) 14 x 45
Max. Table Load (0°/90°) 300 /250
Max. Workpiece Size (W x H mm) Ø600x 300
Diameter of Table Hole (mm) Ø171
Spindle Nose to Table Surface (mm) 50~565
A  Axis, Tilt (deg)/(0.001°) 220°(±110°)
C Axis, Rotary (deg)/(0.001°) 360°
SPINDLE
Tool Shank & Pull Stud ISO40
Spindle Inner Diameter (mm) Ø70
Spindle Speed (rpm) Direct drive 10000 (12000/15000)
Spindle Speed (rpm) Built-in 18000 (20000/24000)
Main Motor (con/30 min Kw) 9/12
AXIS SERVO MOTOR
Rapid Feed Rate (X/Y/Z m/min) 30/30/24
Feed Rate (X/Y/Z/ m/min) 10
Feed Rate (A/C rev/min) 5.5/11.5
X Axis Rated Torque (Nm) 10
Y Axis Rated Torque (Nm) 10
Z Axis Rated Torque (Nm) 10
A Axis Rated Torque (Nm) 10
C Axis Rated Torque (Nm) 10
AUTO TOOL CHANGER
ATC Type DISK – 24,30(Chain-40)
Cam Type ARM
Tool Selection (Bi-direction) RANDOM
Tool Storage Capacity (PCs) 24 (30,40)
Max. Tool Diameter (mm) 90 (76)
Max. Tool Length 300
Max. Tool Weight 8
MISCELLANEOUS
Air Requirement (Kg/cm2) 6
Hydraulic Requirement (Kg/cm2, L) 40, 30L
Voltage 380
Power Requirement (KVA) 40
Coolant Tank Capacity (L) 300
Machine Weight (KGs) 7000
Machine Height (mm) 2900
Floor Space (L x W mm) 3100 x 2230
Packing Size (L x W x H mm) 3100 x 2230 x 2560

All Specifications And Designs Are Subject To Change Without Notice.

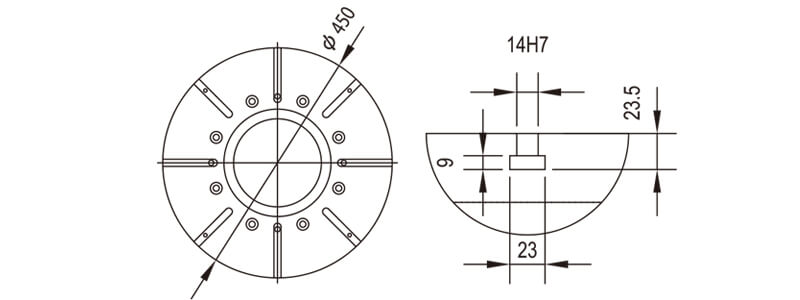

TABLE SIZE

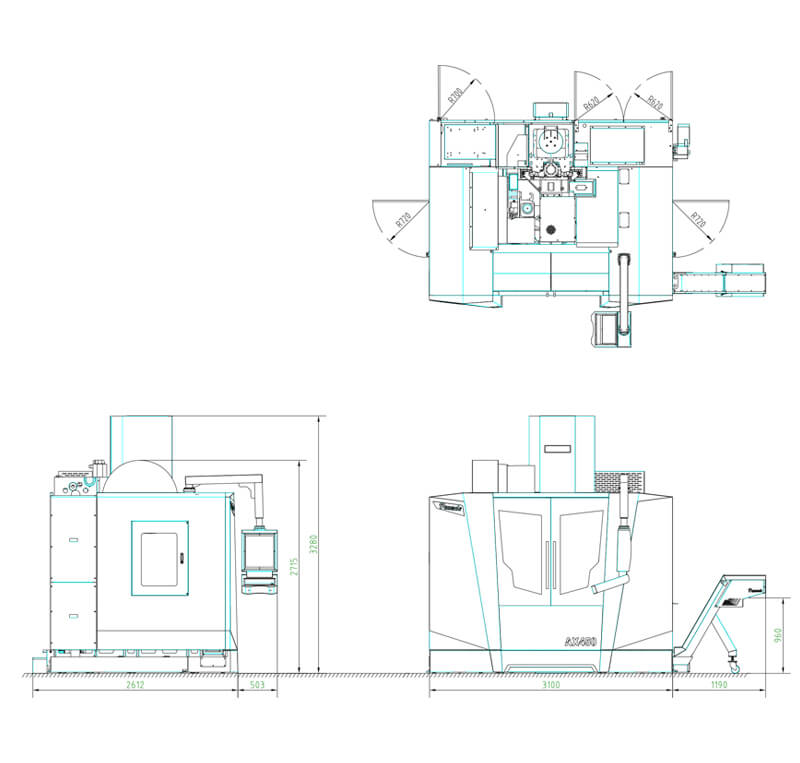

FLOOR SPACE



Accessories

ACCESSORIES
  • Air blast through spindle
  • Air blast for workpiece (nose)
  • Coolant flushing system
  • 3 axes telescopic covers
  • Full splash guard
  • Automatic lubrication system
  • Working lamp
  • Operation status light
  • Arm type 24-tool ATC
  • Z axis pneumatic balance system
  • Cooling System
  • Air gun / water gun
  • MPG handwheel
  • Heat exchanger
  • RS-232 Interface
  • Rigid tapping
  • Spindle oil cooler
  • Adjusting Tools and box
  • Leveling bolts and pads
  • Operation and programming manual
  • Hollow ball screws with cooling system
CONTROL SYSTEM
  • Transformer
  • Chain type chip conveyor
  • Coolant through Spindle
  • Linear Scales
  • Auto tool length measurement
  • Auto workpiece measurement
